Removing and installing/replacing starter motor (Cooper Convertible)

Preliminary work needed:

• Disconnect BATTERY GROUND LEAD.
• Remove front UNDERBODY PROTECTION .
• Remove THRUST FIELD .

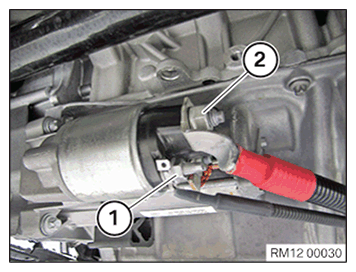

Release nut (1) and remove terminal 50 from starter motor.

Release nut (2) and disconnect positive battery cable from starter motor.

Courtesy of BMW OF NORTH AMERICA, INC.

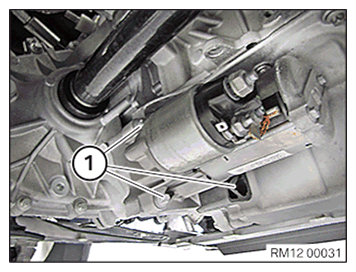

Unscrew the screws (1).

Remove starter motor.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Install starter motor.

Screw in and tighten screws (1).

Tightening torque 12 41 1AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Connect terminal 50 to starter motor and tighten nut (1).

Tightening torque 12 52 1AZ .

Connect positive battery cable to starter motor and tighten nut (2).

Tightening torque 12 52 3AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

• Install THRUST FIELD .
• Install front UNDERBODY PROTECTION .
• Connect BATTERY GROUND LEAD.
