Replacing wheel bearing (wheel hub) for front wheel (Cooper Convertible)

Preliminary work needed:

• Remove front WHEEL .

Removal:

If necessary, lever off protective cap (1).

Gasket (1) is no longer installed.

Courtesy of BMW OF NORTH AMERICA, INC.

Release collar screw (1), press brake pedal to floor for this purpose.

Courtesy of BMW OF NORTH AMERICA, INC.

• Remove BRAKE DISC .

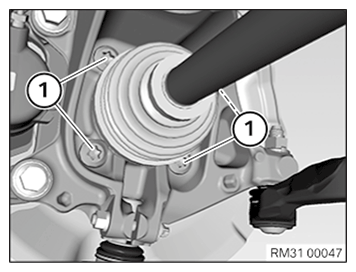

Unscrew the screws (1).

Remove wheel bearing.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Installation note:

• Keep contact surface (2) of wheel bearing (1) and swivel bearing clean and free from grease.

Courtesy of BMW OF NORTH AMERICA, INC.

Attention!

Consider the assignment of wheel bearing - collar screw! It is possible that wheel bearing with thread M12x1.5 or M12x1.25 has been installed.

Replace screws (1).

Parts  : Screws

Tighten down screws (1).

Tightening torque 31 21 1AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

• Install BRAKE DISC .

• Pay attention to installation position of compression spring (2).
• Keep collar screw (1) and spur gearing of wheel bearing/output shaft clean and free of grease

Courtesy of BMW OF NORTH AMERICA, INC.

Attention!

Following installation note for spur gearing must be observed without fail!

Replace collar screw (1) and compression spring.

Part  : Collar screw, compression spring

Tighten collar screw (1) and compression spring manually.

Courtesy of BMW OF NORTH AMERICA, INC.

• Front gearing of wheel bearing (1) and output shaft (2) should be installed form-fit (tooth in tooth position)!

Check whether spur gearing is locked tooth in tooth by reciprocally rotating wheel hub/output shaft.

Tighten the collar screw once positive locking has been ensured.

Tightening torque 31 60 2AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

• Install front WHEEL .
