Removing and installing/replacing backrest cover for left or right rear seat (Cooper Convertible)

Special tools required:

• 52 0 050

Preliminary work needed:

• Remove left or right REAR PANEL  on rear seat backrest.
• Remove HEAD RESTRAINT .
• Remove GUIDE SLEEVES .

Removal:

Carefully feed out seat cover (1) at the bearing journals (2) of the backrest frame.

Courtesy of BMW OF NORTH AMERICA, INC.

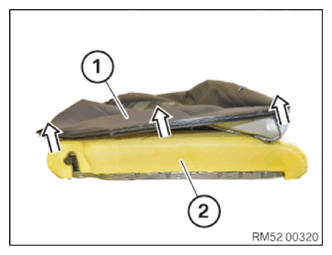

Turn up seat cover (1) all round edges and lift it off the upholstery (2).

Courtesy of BMW OF NORTH AMERICA, INC.

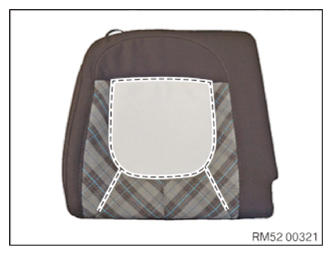

Detaching cover from upholstery:

• Disconnect all clamps in marked area
• Remove cover from upholstery
• Remove all remnants of guard controls from cover and padding

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Pull seat cover over upholstery and mount clamps in marked area.

Parts:

Replace upholstery clamps.

Courtesy of BMW OF NORTH AMERICA, INC.

Insert new clamp (2) with special tool 52 0 050 and bend closed.

1. Upholstery
2. Clamp
3. Trim wire in upholstery
4. Trim wire in seat cover
5. Seat cover

Parts:

Replace upholstery clamps.

Courtesy of BMW OF NORTH AMERICA, INC.

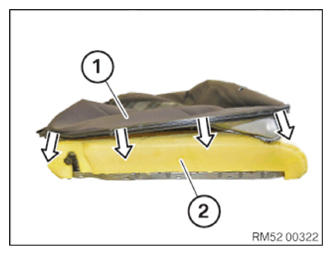

Pull the backrest cover (1) over the upholstery (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Courtesy of BMW OF NORTH AMERICA, INC.

Carefully put seat cover (1) over the bearing journals (2) of the backrest frame.

Courtesy of BMW OF NORTH AMERICA, INC.

Required reworking:

• Install left or right REAR PANEL  on rear seat backrest.
• Install GUIDE SLEEVES .
• Install HEAD RESTRAINT .
