REP-TAT-P-5218-25 When replacing the seat frame: Remount components

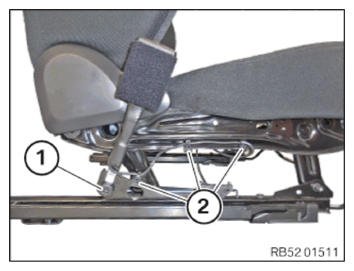

Removing the LATCH anchor for the front passenger seat

• Drill out the blind rivets (1).
• Remove the LATCH anchor (2) for the front passenger seat.

Courtesy of BMW OF NORTH AMERICA, INC.

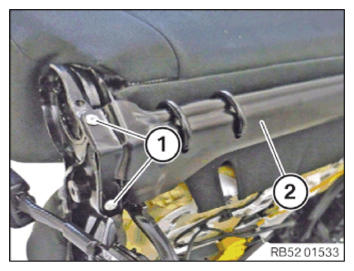

Removing front lower strap

• Loosen screw (1).
• Unclip the cable clip (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

• Feed the cable (1) out of the seat mechanism.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Release cable tie (1).
• Carefully unlock the detents (markings).
• Thread the matching connector plugs (2) in the direction of the arrow out of the connector plug housings (3).

Courtesy of BMW OF NORTH AMERICA, INC.

Installing the front lower strap

• Insert the appropriate connectors (1) into the connector housing (2) and clip them in.
• Fasten the cable (3) on the connector housing (2) using a cable tie.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Hook the cable (1) into the seat mechanism.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Replace the screw (1).

  Parts:  Screw

• Tighten down screw (1).
• Clip in the cable bracket (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Installing the LATCH anchor for the front passenger seat

• Position the ISOFIX anchor (2) for the front passenger seat.
• Replace blind rivets (1).

Parts:  Blind rivet

• Secure the ISOFIX anchor (2) for the front passenger seat using blind rivets (1).

Courtesy of BMW OF NORTH AMERICA, INC.
