Removing and installing/replacing side trim panel, footwell, on A-pillar, right (Cooper Convertible)

Preliminary work needed:

• Remove front right (inner) door sill COVER STRIP

Removal:

Detach edge protection (1) in area of side trim panel (3).

Detach the side trim panel (3) inwards from the clips (2).

Feed out side trim panel (3).

Release fixtures (2) from the body and insert clips into the side trim panel (3).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Clips (1) for the side trim panel (2) must not be damaged.

Courtesy of BMW OF NORTH AMERICA, INC.

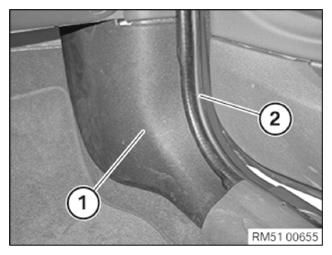

Clip in side trim panel (1).

Make sure edge protection (2) is correctly seated.

Courtesy of BMW OF NORTH AMERICA, INC.

Required reworking:

• Install front right (inner) door sill COVER STRIP
