Removing and installing/replacing the power electric windows in the left or right front door (Cooper Convertible)

Preliminary work needed:

• Remove front door WINDOW GLASS .

Removal:

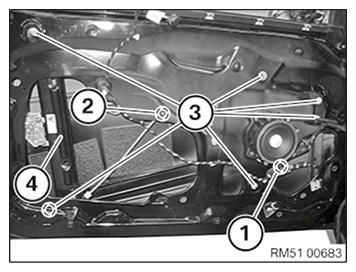

Unfasten plug connection (1) and disconnect.

Loosen the cable from the holder (2).

Loosen the nuts (3) and remove the power window (4) from the door.

Courtesy of BMW OF NORTH AMERICA, INC.

Replacement:

Remount FLAT MOTOR .

Installation:

Insert the power window (4) into the door.

Tighten down nuts (3).

Tightening torque 51 33 1AZ .

Attach the cable to the holder (2).

Connect plug connection (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Required reworking:

• Install front door WINDOW GLASS .
