Removing and installing/replacing right engine compartment lid lock. (Cooper Convertible)

Preliminary work needed:

• Remove TOP CONNECTION .

Removal:

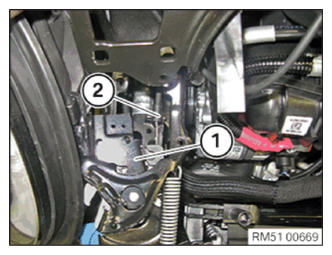

Feed out lock (1).

Detach cable (2) and remove lock (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Attach cable (2) and feed in lock (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Required reworking:

• Install TOP CONNECTION .
