Removing and installing/replacing cable for engine compartment lock, front (in passenger compartment) (Cooper Convertible)

Preliminary work needed:

Removal:

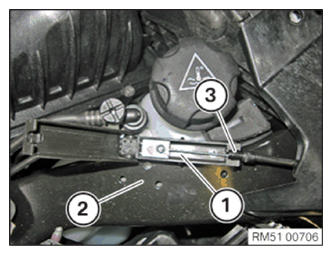

Disengage cable (1) at lever (2).

If necessary, detach the traction (1) from the clips to the firewall.

Courtesy of BMW OF NORTH AMERICA, INC.

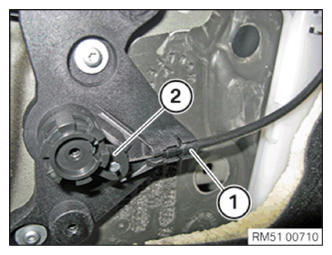

Lift and open the clutch (1) from the door lock support (2).

Disengage cable (3).

Courtesy of BMW OF NORTH AMERICA, INC.

Version 1:

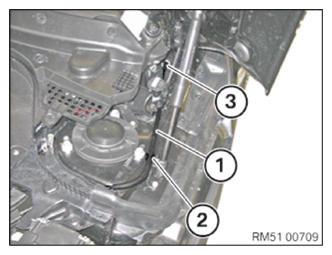

Detach cable (1) from holder (2).

Feed out cable (1) with grommet (3) out of firewall.

Courtesy of BMW OF NORTH AMERICA, INC.

Version 2 with shorter Bowden cable:

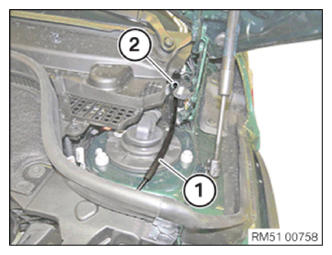

Feed out cable (1) with grommet (2) out of firewall.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Version 1:

Feed in cable (1) with grommet (3) into firewall.

Attach cable (1) in holder (2).

Ensure grommet (3) is correctly fitted on firewall.

Courtesy of BMW OF NORTH AMERICA, INC.

Version 2 with shorter Bowden cable:

Feed in cable (1) with grommet (2) into firewall.

NOTE: Make sure the traction (1) is positioned correctly, traction (1) runs over shock tower.

Courtesy of BMW OF NORTH AMERICA, INC.

Version 2 with shorter Bowden cable (RHD):

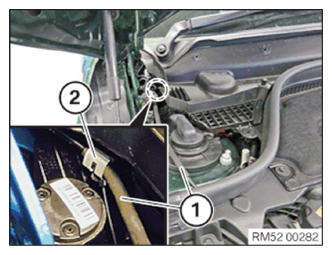

NOTE: Cable (1) must fit correctly in clamp (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Attach cable (3).

Clip in and close the clutch (1) into the door lock support (2).

Courtesy of BMW OF NORTH AMERICA, INC.

If necessary, attach the traction (1) from the clips to the firewall.

Attach cable (1) on lever (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Required reworking:
