Removing and installing/replacing trim on rear left or right wheel arch (Cooper Convertible)

Removal:

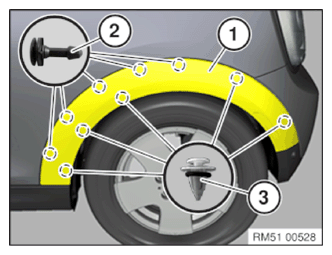

Release trim (1) on the clips (2, 3).

Release trim (1) in the area of the bumper from the detents.

If necessary, unlock associated plug connection and disconnect.

Courtesy of BMW OF NORTH AMERICA, INC.

If replacing with USA national version:

Installation:

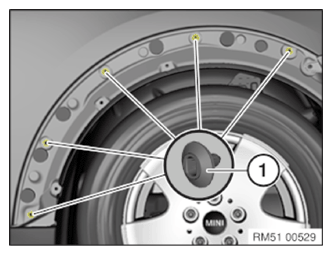

NOTE: Check grommets (1) for damage and replace if required.

Courtesy of BMW OF NORTH AMERICA, INC.

replace faulty clips (2, 3).

If necessary, connect plug connection.

Attach trim (1) and engage at clips (2, 3).

Engage trim (1) in the area of the bumper in the detents.

Courtesy of BMW OF NORTH AMERICA, INC.
