Removing and installing/replacing the trunk lid handle (Cooper Convertible)

Preliminary work needed:

• Remove tailgate TRIM PANEL .

Removal:

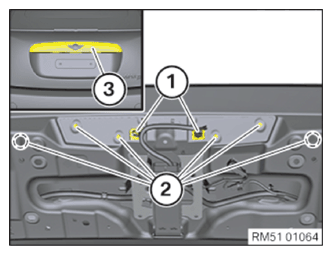

Unlock plug connections (1) and disconnect.

Release screws (2) on the trunk lid handle (3)

Detach the trunk lid handle (3) from the Trunk lid.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Install trunk lid handle (3) on the Trunk lid.

Tighten screws (2) on the trunk lid handle (3).

Tightening torque 51 13 3AZ .

Connect and lock the plug connections (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

• Install the tailgate TRIM PANEL .
