Replacing the center spoiler on rear bumper panel (Cooper Convertible)

Preliminary work needed:

• Remove rear BUMPER COVER .

Removal:

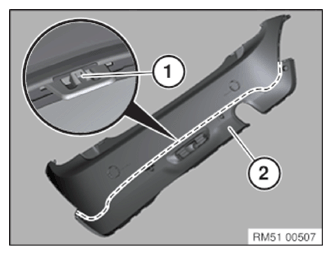

Release catches (1) and remove spoiler (2).

Courtesy of BMW OF NORTH AMERICA, INC.

When replacing, swap over the following parts:

• Replace rear FOG LIGHT .

  Version with PDC:

• Replace rear middle ULTRASONIC TRANSDUCER and rear left ULTRASONIC SENSOR .

Installation:

Position spoiler (2) and engage detents (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Required reworking:

• Install rear BUMPER COVER .
