REP-TAT-P-5112-25 Replacing the bumper cover lower section

Preliminary work

• Remove rear BUMPER COVER
• Remove the DIFFUSER
• Replace the bumper cover lower section
• Follow-up work
• Install the DIFFUSER
• Install rear BUMPER COVER

• Release the expanding rivet (1)  .

Courtesy of BMW OF NORTH AMERICA, INC.

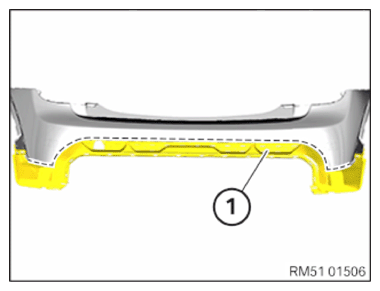

• Release and remove bumper cover lower section (1)  from all the detents along the dotted line.

Courtesy of BMW OF NORTH AMERICA, INC.

• Check the detents for damage and, if necessary, replace bumper cover lower section (1)  .
• Engage bumper cover lower section (1)  into all the detents along the dotted line.

Courtesy of BMW OF NORTH AMERICA, INC.

• Mount the expanding rivets (1)  .

Courtesy of BMW OF NORTH AMERICA, INC.
