REP-TAT-P-5112-02 Installing the bumper cover lower section

Follow-up work

• Install rear BUMPER COVER
• Install the left and right TAIL LIGHTS

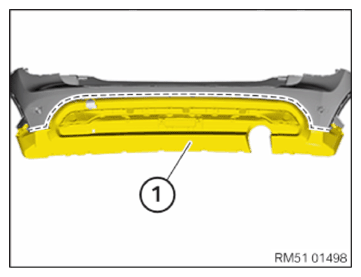

• Check bumper cover lower section (1) for damage and, if necessary, replace it.
• Engage bumper cover lower section (1) into all the detents along the dotted line.

  Courtesy of BMW OF NORTH AMERICA, INC.

  NOTE: Perform the steps on the right and left side.

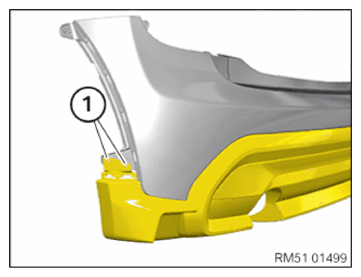

• Mount the expanding rivets (1).

  Courtesy of BMW OF NORTH AMERICA, INC.
