REP-TAT-P-5112-01 Remove the bumper cover lower section

Preliminary work

Remove the left and right TAIL LIGHTS
Remove rear BUMPER COVER

NOTE: Perform the steps on the right and left side.

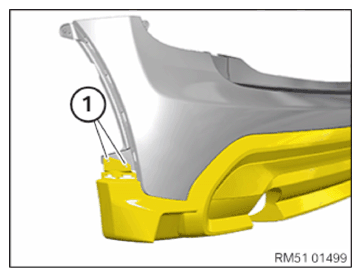

Release the expanding rivet (1).

Courtesy of BMW OF NORTH AMERICA, INC.

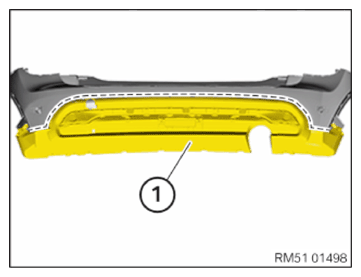

Release and remove bumper cover lower section (1) from all the detents along the dotted line.

Courtesy of BMW OF NORTH AMERICA, INC.
