Removing and installing/replacing servodrive for fuel filler flap (Cooper Convertible)

Preliminary work needed:

Removal:

Unlock retaining lugs (2) with a suitable tool.

Remove actuator drive (1) from cover pot (3).

Courtesy of BMW OF NORTH AMERICA, INC.

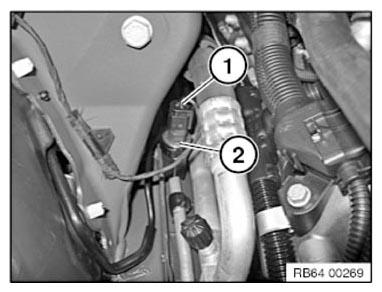

Release the actuator drive (2) by simultaneously turning and pressing the locking pin (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

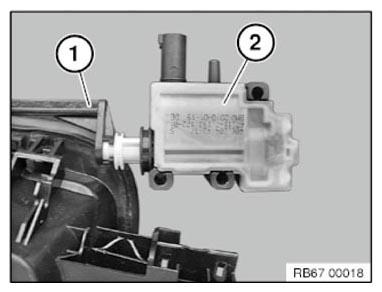

Engage actuator drive (2) at locking pin (1).

NOTE: Make sure the setting for the controller drive (2) for the gas cap is correct. It must be possible to lock or unlock the gas cap completely.

Courtesy of BMW OF NORTH AMERICA, INC.

Correctly position actuator drive (1) and engage in cover housing (3).

NOTE: Retaining lugs (2) must not be damaged or missing.

Courtesy of BMW OF NORTH AMERICA, INC.

Required reworking:
