Removing and installing/replacing right charge air duct (B48 and B46 engine) (Cooper S and John Cooper Works)

Safety instructions:

• In the event of a leak at the pressure pipe, there is a risk of damage  on the exhaust turbocharger!

Preliminary work needed:

• Remove front UNDERBODY PROTECTION .
• Remove THRUST FIELD .
• Remove FRONT RIGHT WHEEL ARCH PANEL .
• Release FRONT LEFT WHEEL ARCH PANEL at bottom.

Removal:

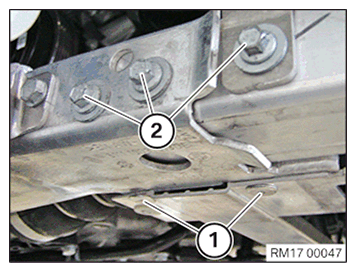

Release screws (2) for front left cross connection.

Drill out blind rivets (1) for front left cross connection.

Courtesy of BMW OF NORTH AMERICA, INC.

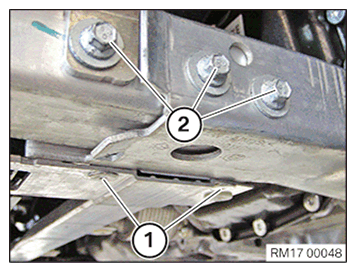

Release screws (2) for front right cross connection.

Drill out blind rivets (1) for front right cross connection.

Courtesy of BMW OF NORTH AMERICA, INC.

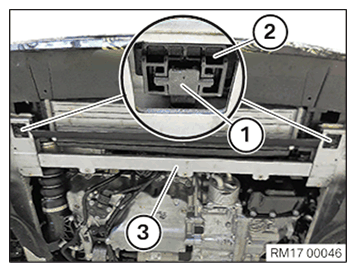

Release front left and right locking pins (1) and remove locks (2).

Remove cross connection (3).

Courtesy of BMW OF NORTH AMERICA, INC.

Loosen screws (1).

Unclip line (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock lock of charge air cooler on both sides by means of suitable tool.

Detach charge air duct (1) from exhaust turbocharger.

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock lock (1) of exhaust turbocharger on both sides by means of suitable tool.

Detach charge air duct (2) from exhaust turbocharger.

Courtesy of BMW OF NORTH AMERICA, INC.

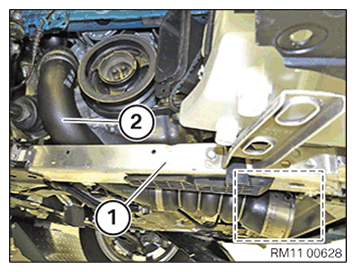

Slightly pull right deformation element (1) downwards.

Feed out lower part of charge air duct (2) inside the marked area downwards.

Courtesy of BMW OF NORTH AMERICA, INC.

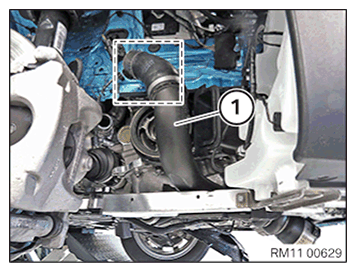

Feed out upper section of charge air duct (1) inside the marked area along the side member.

Courtesy of BMW OF NORTH AMERICA, INC.

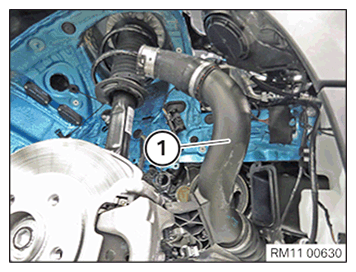

Remove charge air duct (1) through the wheel arch.

Courtesy of BMW OF NORTH AMERICA, INC.

Preparation for installation:

Check sealing lip (1) for damage.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Check that the seal (1) is fitted correctly:

The seal (1) appears to be fitted correctly in the pressure pipe.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Check that the seal (1) is fitted correctly:

The seal (1) appears to be fitted incorrectly  in the pressure pipe.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Remove charge air duct (1) through the front right wheel arch.

Courtesy of BMW OF NORTH AMERICA, INC.

Feed in upper section of charge air duct (1) passing the side member.

Courtesy of BMW OF NORTH AMERICA, INC.

Feed in lower part of charge air duct (2) inside the marked area.

Push right deformation element (1) upwards into initial position.

Courtesy of BMW OF NORTH AMERICA, INC.

Release locks (1) from holders.

Locks must engage.

Courtesy of BMW OF NORTH AMERICA, INC.

Connect charge air duct (1) to exhaust turbocharger until lock (2) engages on both sides.

Courtesy of BMW OF NORTH AMERICA, INC.

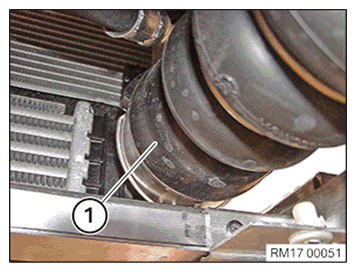

Connect front right charge air hose (1) and lock.

Charge air hose (1) must audibly engage on charge air cooler.

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten down screws (1).

Tightening torque: 11 00 2AZ .

Clip in line (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Install cross connection (3).

Install locks (2) and lock with locking pins (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Replace screws (2) for front right cross connection and tighten.

Tightening torque 17 10 9AZ .

Replace blind rivets (1) for cross connection and rivet.

Parts:  Replace blind rivets (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Replace screws (2) for front left cross connection and tighten.

Tightening torque 17 10 9AZ .

Replace blind rivets (1) for cross connection and rivet.

Parts:  Replace blind rivets (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

• Install FRONT RIGHT WHEEL ARCH PANEL .
• Install the LEFT FRONT WHEEL ARCH TRIM PANEL .
• Install THRUST FIELD .
• Install front UNDERBODY PROTECTION .
• Check turbocharging path for leak tightness.
• Check function of DME.
