Removing and installing/replacing the auxiliary water pump (B36 engine) (Cooper base)

Preliminary work needed:

• Drain COOLANT .

Removal:

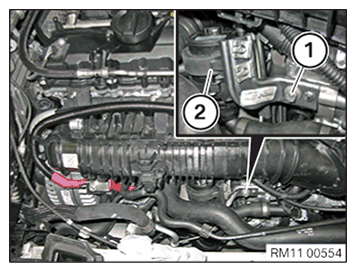

Remove screw (1).

Pull the auxiliary coolant pump (2) slightly forwards.

Courtesy of BMW OF NORTH AMERICA, INC.

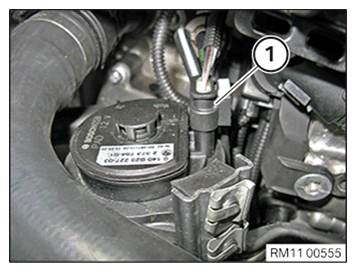

Unlock and disconnect the connector (1) of the auxiliary coolant pump.

Courtesy of BMW OF NORTH AMERICA, INC.

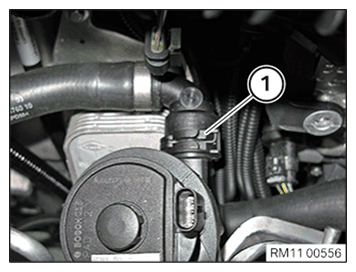

Unlock coolant hose (1) and detach auxiliary coolant pump.

Courtesy of BMW OF NORTH AMERICA, INC.

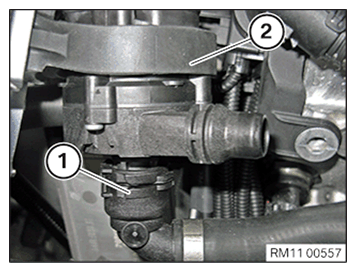

Unlock coolant hose (1) and detach auxiliary coolant pump (2).

Remove auxiliary water pump (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

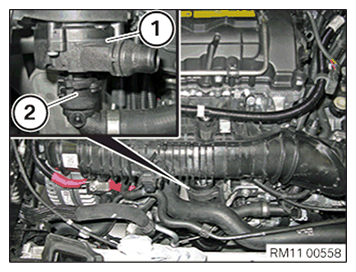

Install auxiliary coolant pump (1).

Connect coolant hose (2) to auxiliary coolant pump (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Connect coolant hose (1) to auxiliary coolant pump.

Courtesy of BMW OF NORTH AMERICA, INC.

Connect the connector (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Fasten auxiliary coolant pump with screw (1).

Tightening torque 11 51 4AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

• Add COOLANT .
• Check cooling system for leaks
