REP-TAT-P-1151-02-6 Installing coolant pump

Inspection:

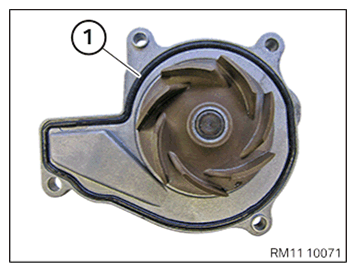

• Check whether the sealing bead (1) is glued to the housing of the coolant pump.
• Check sealing bead (1) for damage.
• Measure the height of the sealing bead (1) in relation to the surface.

  Courtesy of BMW OF NORTH AMERICA, INC.

Result

« Sealing bead (1) is damaged or the measured dimension deviates.

Measure

• Remove the sealing bead (1).

• Reapply the sealing bead (1).
• Have the special tool 2 469 803  ready.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Position the sealing compound (1) as shown on the special tool 2 469 803  .

  Parts:  Sealing compound

  Sealing compound
  Loctite 5970 liquid sealing compound Processing time <10 minutes at room temperature	50 ml, Cartridge	1 83190404517

  Courtesy of BMW OF NORTH AMERICA, INC.

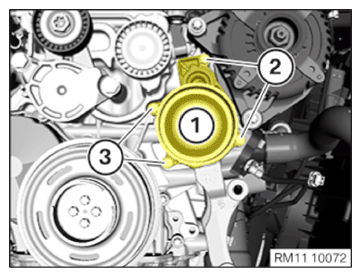

• Tighten screws (2) and (3) of the coolant pump (1).
  TIGHTENING TORQUE SPECIFICATION



  Coolant pump to component carrier
  M6 screw	9 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

Follow-up work:

• Connect right charge air duct to the charge air cooler:

  Insert the charge air duct on the charge air cooler, till the lock (1) engages on both sides.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Install the DRIVE BELT FOR ALTERNATOR .
• Install RIGHT CHARGE AIR LINE .
• Install front underbody protection with the THRUST FIELD .
• Fill and vent the COOLANT CIRCUIT .
