Removing and installing/replacing servomotor for eccentric shaft (B48 and B46 engine) (Cooper S and John Cooper Works)

Preliminary work needed:

• Remove ACOUSTIC COVER .
• Remove the CROSS CONNECTION .

Removal:

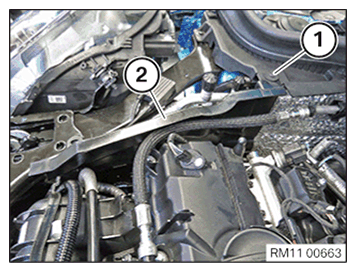

Remove screw (1).

Remove top partition wall (2) in upwards direction.

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock and disconnect connector (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew the screws (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Attention!

Risk of damage  to intermediate shaft.

Release intermediate shaft:

Turn servomotor (1) in arrow direction to the left by means of reversible ratchet (2) and 4 mm  Allen wrench.

Remove actuator drive.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Installation note:

When the servomotor for the eccentric shaft is being installed, the gearing must be thinly and evenly greased with the lubricating grease Longtime PD-1 OVERVIEW OF CONSUMABLES 4.1 .

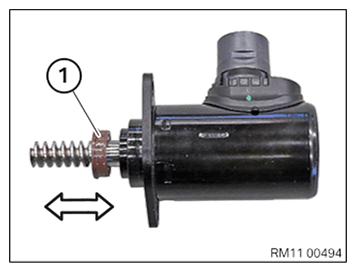

Detach and replace gasket (1) in arrow direction.

Courtesy of BMW OF NORTH AMERICA, INC.

Courtesy of BMW OF NORTH AMERICA, INC.

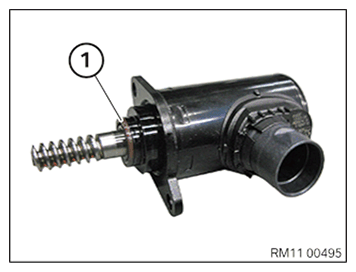

Grease the gearing (1) of the servomotor for the eccentric shaft (2) in the marked area.

Parts  : lubricating grease

Courtesy of BMW OF NORTH AMERICA, INC.

Insert controller drive (1) as far as the gearing.

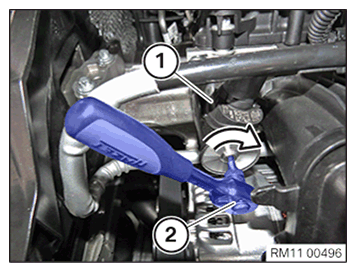

Screw in controller drive (1) using reversible ratchet (2) and 4 mm  Allen wrench in arrow direction up to stop.

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten down screws (1).

Tightening torque: 11 37 2AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Connect the connector (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Install top partition wall (2).

Tighten screw (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

• Install CROSS CONNECTION .
• Install the ACOUSTIC COVER .
