Removing and installing/replacing both VANOS actuators (B48 and B46 engine) (Cooper S and John Cooper Works)

Special tools required:

• 2 360 895

Preliminary work needed:

• Remove ACOUSTIC COVER .
• Remove AIR INTAKE SILENCER HOUSING .

Removal:

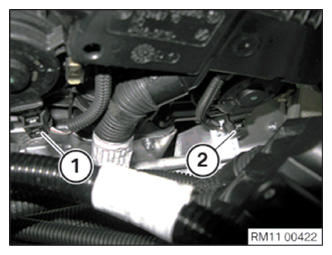

Release clamp (1).

Remove the clean air pipe (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Unlock the cable routing (1) and detach it from the cylinder head cover in upward direction.

Courtesy of BMW OF NORTH AMERICA, INC.

Release and detach the connector (1) for the actuator inlet.

Release and detach connector (2) for actuator outlet.

Courtesy of BMW OF NORTH AMERICA, INC.

Turn the actuator intake (1) using special tool 2 360 895 through approx. 50° in arrow direction then remove.

Courtesy of BMW OF NORTH AMERICA, INC.

Turn the actuator outlet (1) using special tool 2 360 895 through approx. 50° in arrow direction then remove.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Position the actuator outlet (1) and turn using special tool 2 360 895 in arrow direction until the stop rests against the clamp.

Courtesy of BMW OF NORTH AMERICA, INC.

Position the actuator inlet (1) and turn using special tool 2 360 895 in arrow direction until the stop rests against the clamp.

Courtesy of BMW OF NORTH AMERICA, INC.

Connect the actuator inlet connector (1).

Connect the actuator outlet connector (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Clip the cable routing (1) into the cylinder head cover from above.

Courtesy of BMW OF NORTH AMERICA, INC.

Install the clean air pipe (2).

Connect the clamp (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

• Install AIR INTAKE SILENCER HOUSING .
• Install ACOUSTIC COVER .
• Check engine operation and check for leak tightness
