Replacing all valve stem seals (B48 and B46 engine) (Cooper S and John Cooper Works)

Special tools required:

• 11 1 480
• 11 1 960
• 11 6 380

Preliminary work needed:

• Remove VALVE SPRINGS .

Removal:

Disassemble the valve stem seal (1) with the special tool 11 1 480 in direction of arrow.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Installation note:

As an alternative to special tool 11 1 960, the assembly sleeves  delivered with the spare part can be used.

Courtesy of BMW OF NORTH AMERICA, INC.

Position special tool 11 1 960 or assembly sleeve on the valve (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Position and guide in special tool 11 1 960 or assembly sleeve on the valve stem seal (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Guide out and remove special tool 11 1 960 or assembly sleeves.

Courtesy of BMW OF NORTH AMERICA, INC.

Replace the valve stem seal (1).

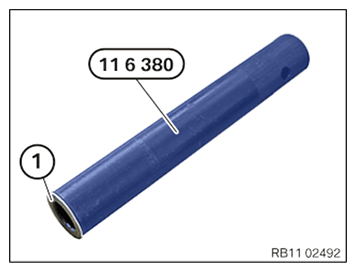

Position the new valve stem seal (1) in special tool 11 6 380.

Courtesy of BMW OF NORTH AMERICA, INC.

Press on valve stem seal (1) to stop using special tool 11 6 380 in arrow direction.

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

• Install VALVE SPRINGS .
• Assemble engine
