Replacing both timing chains (B48 and B46 engine) (Cooper S and John Cooper Works)

Special tools required:

2 357 904
11 4 120

Preliminary work needed:

Remove ENGINE with transmission
Vehicles with automatic transmission: Remove transmission.
- Up to model year 2019, refer to REMOVING AND INSTALLING TRANSMISSION (AISIN F21FT) .
- As of model year 2020, refer to REMOVING AND INSTALLING AUTOMATIC TRANSMISSION (AISIN GA8G45) .
Vehicles with manual transmission: Remove transmission.
- Refer to REMOVING AND INSTALLING TRANSMISSION (GS6-59BG/DG) (COOPER S AND JOHN COOPER WORKS) .
Mount ENGINE ON ASSEMBLY JIG .
Remove FLYWHEEL .
Remove CYLINDER HEAD .
Remove VACUUM PUMP .
Remove REAR TIMING CASE COVER .

Removal:

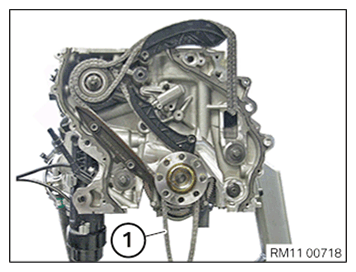

Remove drive chain (1) for oil pump.

Courtesy of BMW OF NORTH AMERICA, INC.

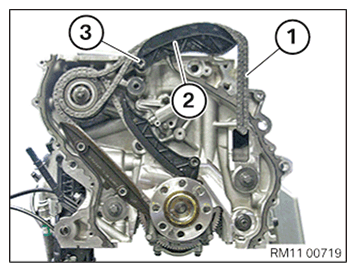

Remove camshaft timing chain (1).

Remove tensioning rail (2) from bearing journal (3).

NOTE: Bearing journal (3) does not have to be removed.

Courtesy of BMW OF NORTH AMERICA, INC.

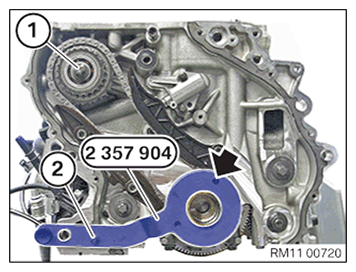

The crankshaft must be blocked in order to release central bolt (1) of the high pressure pump.

Position crankshaft with guide pin. Fix special tool 2 357 904 with screw (2) in position at the crankcase.

Release central bolt (1).

Courtesy of BMW OF NORTH AMERICA, INC.

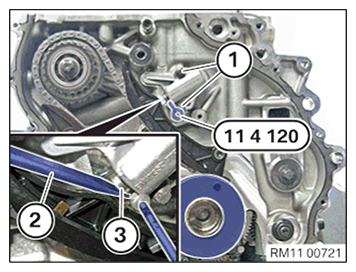

Use screwdriver (2) to press piston (3) for chain tensioner to stop and secure piston with special tool 11 4 120.

Unscrew the screws (1). Remove chain tensioner.

Courtesy of BMW OF NORTH AMERICA, INC.

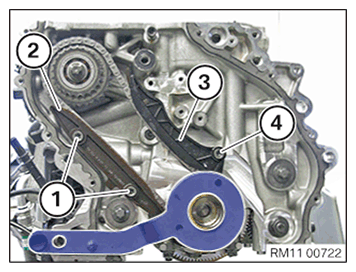

Undo both bearing journals (1).

Remove guide rail (2).

Release bearing tappet (4).

Remove tensioning rail (3).

Courtesy of BMW OF NORTH AMERICA, INC.

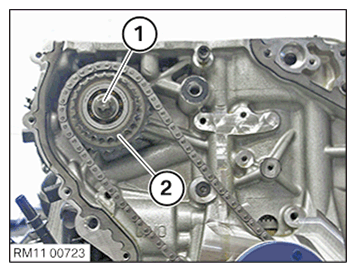

Release screw (1) and remove camshaft wheel (2).

Courtesy of BMW OF NORTH AMERICA, INC.

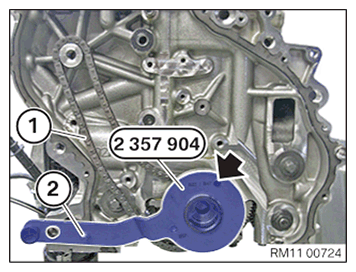

Release screw (2) and remove special tool 2 357 904.

Remove timing chain (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Fit timing chain (1).

Position crankshaft with special tool 2 357 904.

Fix special tool 2 357 904 with screw (2) in position at the crankcase.

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Clean all the threads of the bearing journals (if necessary with screw tap).

Parts: Replace bearing journals.

Install camshaft wheel and tighten screw until it makes contact.

Position guide rail (2).

Screw in both bearing journals (1).

Tightening torque: 11 11 3AZ .

Position tensioning rail (3).

Screw in bearing journals (4).

Tightening torque: 11 11 3AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

IMPORTANT: Clean sealing surfaces (1) with compressed air.

Courtesy of BMW OF NORTH AMERICA, INC.

Install hydraulic chain tensioner. Tighten down screws (1).

Tightening torque: 11 11 7AZ .

Secure piston (3) for chain tensioner with screwdriver (2).

Remove special tool 11 4 120 and slowly remove screwdriver (2).

Courtesy of BMW OF NORTH AMERICA, INC.

NOTE: The crankshaft must remain blocked in order to tighten the central bolt (1) of the high pressure pump.
Parts: Replace central bolt (1).

Tighten down central bolt (1).

Tightening torque: 11 11 4AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Install tensioning rail (2) with timing chain (1) for camshafts.

Courtesy of BMW OF NORTH AMERICA, INC.

Mount drive chain (1) for oil pump on crankshaft.

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

Install REAR TIMING CASE COVER .
Install VACUUM PUMP .
Mount the FLYWHEEL .
Mount the CYLINDER HEAD .
Remove engine from ASSEMBLY JIG .
Install transmission. Refer to REMOVING AND INSTALLING TRANSMISSION (AISIN F21FT) (up to model year 2019) or REMOVING AND INSTALLING TRANSMISSION (GS6-59BG/DG) (as of model year 2020).
Install ENGINE with transmission
