Removing and installing/replacing exhaust camshaft (B36 engine) (Cooper base)

Special tools required:

• 11 9 000

Preliminary work needed:

• Remove EXHAUST CAMSHAFT ADJUSTER .

Removal:

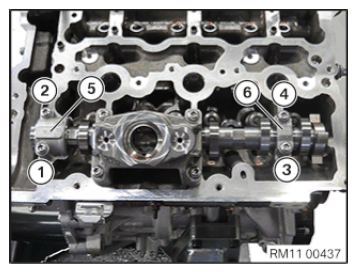

Release all screws in the sequence 8 - 1  in half-turns.

Remove roller tappet (9).

Remove the high pressure pump bracket (1) and the bearing cap (2).

Courtesy of BMW OF NORTH AMERICA, INC.

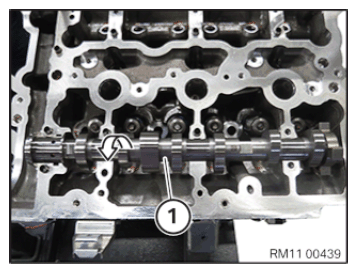

Take exhaust camshaft (1) out of cylinder head.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Attention!

Removal on engine  :

Set engine to ignition TDC at cylinder No. 1.

Removed cylinder head  :

When using special tool 11 9 000, it will be necessary to remove the aluminum strip.

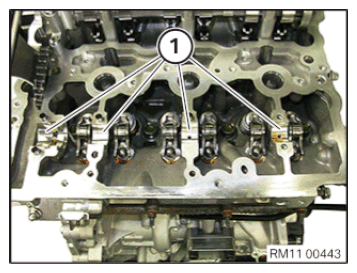

Moisten all bearing positions (1) with motor oil.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

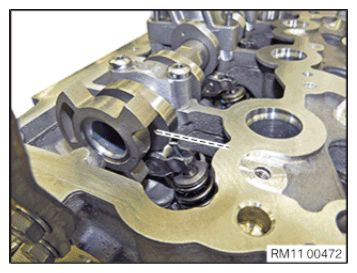

Prior to installation of exhaust camshaft, ensure proper installation position of rocker arm (1).

Coat exhaust camshaft and bearing caps with motor oil.

Courtesy of BMW OF NORTH AMERICA, INC.

Attention!

Rotate exhaust camshaft approximately 80° in direction of engine rotation to first cylinder TDC and screw in place.

The cam on the exhaust camshaft on the first cylinder points towards the middle of the engine.

After tightening the bearing cap, the exhaust camshaft on the mounting flats must be rotated back to first cylinder TDC.

Courtesy of BMW OF NORTH AMERICA, INC.

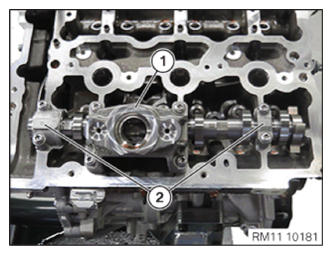

Coat both bearing positions on high pressure pump bracket (1) and bearing caps (2) with motor oil.

Position the high pressure pump bracket (1) and the bearing caps (2) on the cylinder head.

Courtesy of BMW OF NORTH AMERICA, INC.

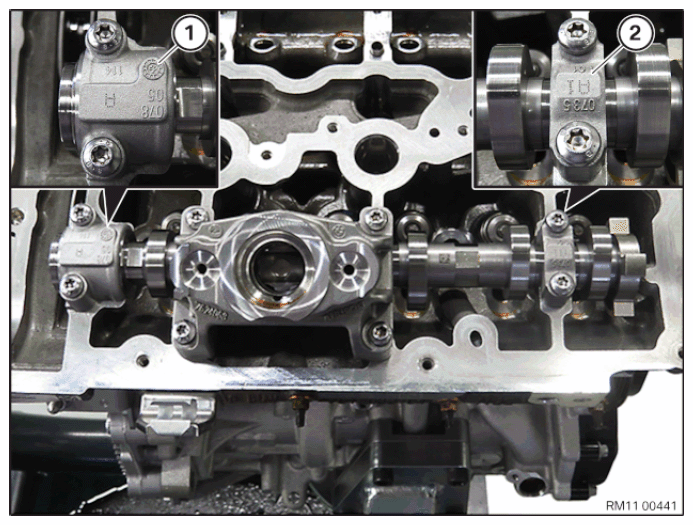

The bearing cap (1) of the exhaust camshaft is a thrust bearing.

The bearing cap (1) is legibly labeled "A" from the intake side.

The bearing cap (2) is legibly labeled "A1" from the intake side.

Courtesy of BMW OF NORTH AMERICA, INC.

Coat exhaust camshaft and bearing caps with motor oil.

Position both bearing caps on cylinder head.

Installation note:

Check the tensile strength of the screws for the bearing caps.

The illustration shows the screw with a tensile strength of 8.8  .

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Check the tensile strength of the screws for the bearing caps.

The illustration shows the screw with a tensile strength of 10.9  .

Courtesy of BMW OF NORTH AMERICA, INC.

Press down on the bearing caps and hand tighten the screws incrementally in the sequence 1 - 8  .

Join  the screws in the sequence 1 - 8  in half-turns.

Note the tightening torque 11 31 1AZ .

Tighten screws in the sequence 1 - 8  .

Tightening torque 11 31 1AZ .

Coat the roller tappet (9) with motor oil and install in the high pressure pump bracket.

Required follow-up work:

• Install EXHAUST CAMSHAFT ADJUSTER .
• Adjust VALVE TIMING .
