18 12 045 Replacing center silencer (B36, B38)

WARNING:

Danger of burning and other injuries!

This repair work may only be carried out on an exhaust system which has cooled down.

Removal of the center silencer must be carried out with the assistance of a second person.

Necessary preliminary tasks:

Use a suitable jack to support and secure the center silencer against falling.

Fig 1: Locating Cover Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Removal:

Loosen screws.

Remove cover (1).

Fig 2: Rear Silencer Rubber Mount

Courtesy of BMW OF NORTH AMERICA, INC.

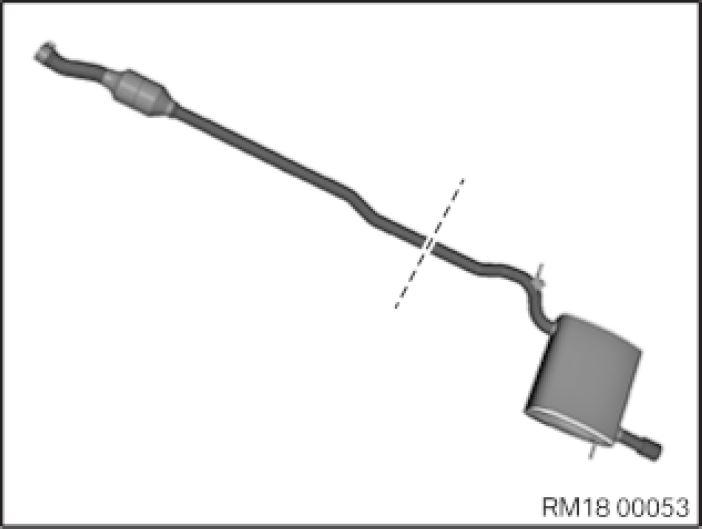

NOTE: If the separation point is not marked by a punch mark in the pipe, determine the separation point by means of the pipe length on the new center silencer.
Carry over separation point to faulty center silencer and mark.
Secure center silencer against falling off.
Cut through exhaust pipes at marked point with a suitable tool.

Fig 3: Connection Carrier Screws

Courtesy of BMW OF NORTH AMERICA, INC.

F56 only:

Loosen screws (1).

Remove connection carrier.

Fig 4: Connection Carrier Screws

Courtesy of BMW OF NORTH AMERICA, INC.

F55 only:

Loosen screws (1).

Remove front connection carrier (2).

Loosen screws (3).

Remove rear connection carrier (4).

Fig 5: Front Or Rear Connection Carrier And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Release clamp (1).

Replace clamp (1).

Parts: Clamp.

Lower and remove center silencer with assistance of a second person.

Fig 6: Exhaust System Clamp (Version 1: Ribbon Clamp)

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Install new center silencer.

Tighten clamp (1).

Tightening torque 18 20 1AZ .

Fig 7: Clamp

Courtesy of BMW OF NORTH AMERICA, INC.

Adjust new center silencer and connect by clamp to rear silencer.

Center clamp and tighten down.

Tightening torque 18 20 3AZ .

Fig 8: Rear Silencer Clamp

Courtesy of BMW OF NORTH AMERICA, INC.

F56 only:

Install connection carrier.

Tighten down screws (1).

Tightening torque 18 30 4AZ .

Fig 9: Connection Carrier Screws

Courtesy of BMW OF NORTH AMERICA, INC.

F55 only:

Install front connection carrier (2).

Tighten down screws (1).

Tightening torque 18 30 7AZ .

Install rear connection carrier (4).

Tighten down screws (3).

Tightening torque 18 30 4AZ .

Fig 10: Connection Carriers And Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Position cover (1).

Tighten the screws.

Fig 11: Locating Cover Screws

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

Check exhaust system for leak tightness.
