Removing and installing/replacing acoustic cover (B36 engine) (Cooper base)

REMOVAL:

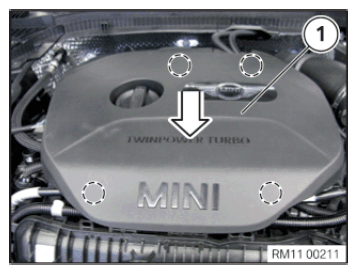

Loosen and remove the acoustic cover (1) to the top out of the mountings in the marked areas.

Courtesy of BMW OF NORTH AMERICA, INC.

INSTALLATION:

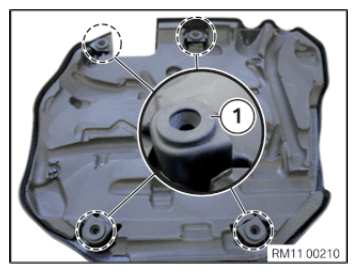

Mountings (1) must not be damaged or missing.

Courtesy of BMW OF NORTH AMERICA, INC.

Align acoustic cover (1).

Press acoustic cover (1) into mountings.

Courtesy of BMW OF NORTH AMERICA, INC.
