Replacing wiring harness section for Valvetronic servomotor (B48, B46) (Cooper S Convertible)

IMPORTANT: Read and comply with NOTES on protection against electrostatic discharge (ESD protection)!

Preliminary work needed:

Removal:

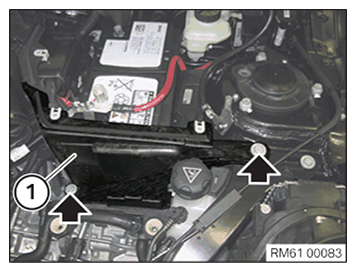

Release expanding rivet and remove mounting for gasket (1).

Courtesy of BMW OF NORTH AMERICA, INC.

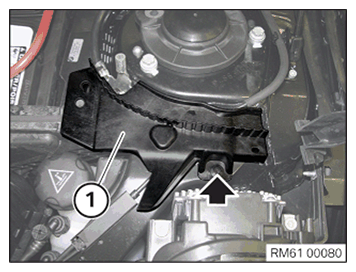

Release screw and remove tension strut (1).

Courtesy of BMW OF NORTH AMERICA, INC.

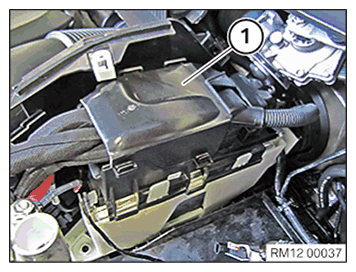

Unclip and remove cover (1).

Courtesy of BMW OF NORTH AMERICA, INC.

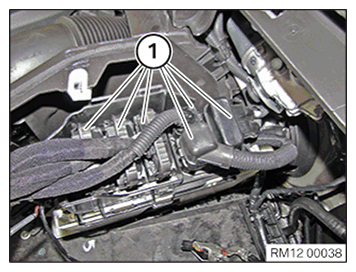

Unlock and disconnect all connectors (1) on control unit.

Courtesy of BMW OF NORTH AMERICA, INC.

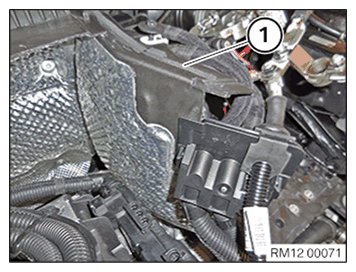

Release wiring harness from the partition wall (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Courtesy of BMW OF NORTH AMERICA, INC.

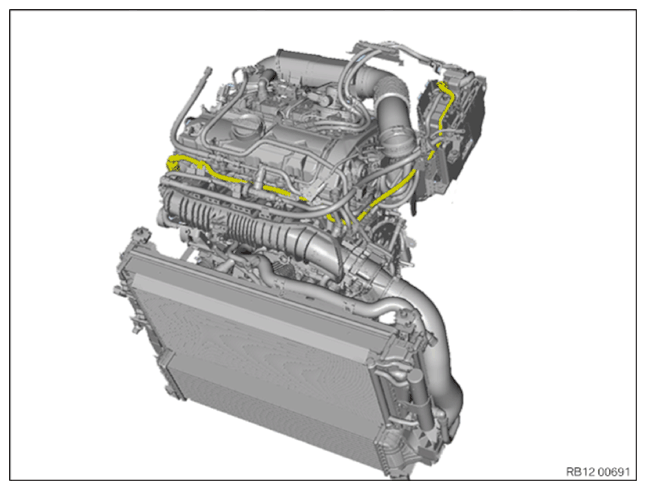

Overview of Valvetronic servomotor wiring harness section

Unlock and disconnect following connectors and lines	Note
Unlock and disconnect connector from DME control unit
Unlock and disconnect connector from servomotor

Release wiring harness from clips and guard controls.

Feed out wiring harness and remove.

Installation:

Route and install wiring harness.

Plug in all connectors as specified in table.

All connectors must audibly engage.

Connect all connectors (1) to control unit.

All connectors (1) must engage audibly.

Installation note:

Connect connectors from front to rear.

Courtesy of BMW OF NORTH AMERICA, INC.

Install cover (1).

Courtesy of BMW OF NORTH AMERICA, INC.

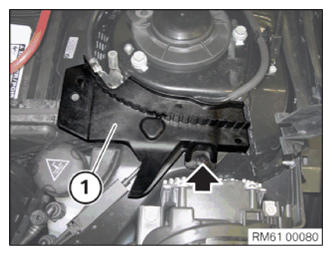

Join tension strut (1) and tighten with screws.

Tightening torque 61 21 5AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Join mounting for gasket (1) and secure with expanding rivet.

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:
