Replacing anti-roll bar link for anti-roll bar, bar on left or right (Cooper Convertible)

Preliminary work needed:

• Remove rear WHEEL .

Removal:

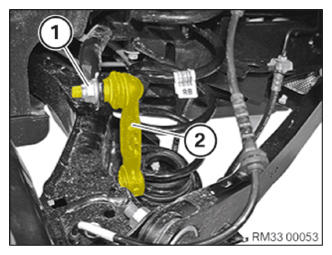

Remove screw (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Release nut (1), if necessary, grip at inner Torx socket.

Remove anti-roll bar link (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Installation:

Screw on new anti-roll bar link hand force with screw (1) to trailing arm.

• Do not yet apply torque!

Courtesy of BMW OF NORTH AMERICA, INC.

Insert anti-roll bar link (2) on anti-roll bar.

Tighten nut (1). If necessary, counter-hold at the Torx socket.

Part  : replace nut (1).

Tightening torque 33 55 1AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Tighten screw (1) on trailing arm.

Tightening torque 33 55 2AZ .

Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work:

• Install rear WHEEL .
