Rear axle: Perform wheel alignment after the following repair work (Cooper Convertible)

Courtesy of BMW OF NORTH AMERICA, INC.

Perform KDS CHASSIS/WHEEL ALIGNMENT CHECK with vehicle load up to design position or KINEMATICS DIAGNOSIS SYSTEM WHEEL ALIGNMENT with ride height measurement without loading the vehicle after the following repair work:

• Release the following screw connection:
  • Trailing arm bearing support to body
  • Upper wishbone to rear axle carrier
  • Bottom wishbone at the rear axle support/trailing arm

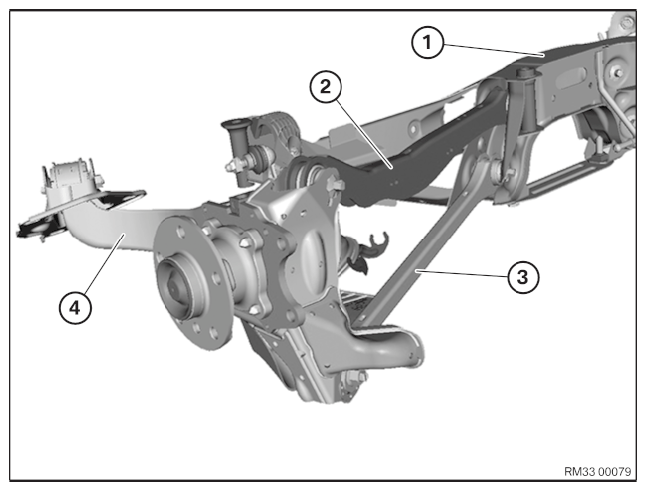

• replacement of following parts:
  1. Rear axle carrier
  2. Upper wishbone
  3. Lower wishbone
  4. Trailing arm/trailing arm bearing support/rubber mount
