REP-TAT-P-5434-02 Install the transmission for the left and right convertible top drive unit

Follow-up work

• Open the convertible top manually on the convertible top STORAGE TRAY
• Remove the convertible top from the convertible top STORAGE TRAY
• Install the left CONVERTIBLE TOP DRIVE UNIT and the right CONVERTIBLE TOP DRIVE UNIT

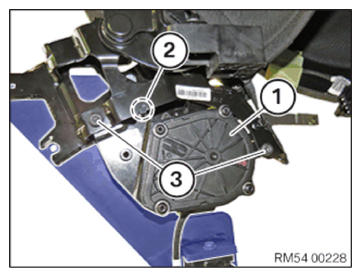

• Insert the transmission (1) and correctly position in the area of (2).
• Tighten down screws (3).
  TIGHTENING TORQUE SPECIFICATION



  Transmission to frame

  12 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Tighten down screw (1).

Courtesy of BMW OF NORTH AMERICA, INC.
