REP-TAT-P-5434-01 Remove the tooth segments for the left and right convertible top drive unit

NOTE: Perform the steps on the right and left side.

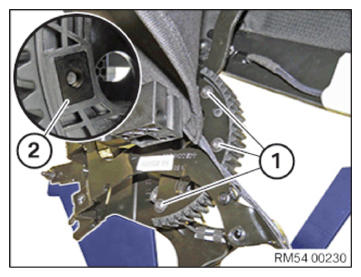

• Loosen screws (1).

  If necessary, counter support the sleeves (2) from the rear.

  Courtesy of BMW OF NORTH AMERICA, INC.

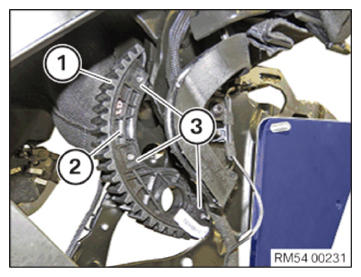

• Remove the tooth segment (1) with reinforcement plate (2) and sleeves (3).

Courtesy of BMW OF NORTH AMERICA, INC.
