REP-TAT-P-5434-02 Install soft top cover

Follow-up work

Install BOTH SEALS on the roof frame at the rear
Install TRIM STRIPS on the convertible top and AUXILIARY BRAKE LIGHT
Perform FUNCTIONAL CHECKS

NOTE: TECHNICAL INFORMATION
An excessive convertible top tension not only increases the closing force but also gives the convertible top the characteristic of a 'drum'. The wind forces encountered when driving as well as impacting rain drops then really "drum" on the convertible top fabric and significantly impair the acoustics in the vehicle interior. A convertible top fabric with insufficient tension "sags" and tends to "beat" at high speeds.
The dimensions and tolerances of the convertible top linkage and the convertible top fabric have been designed so that it is not necessary to correct the tension. A new convertible top fabric always has a somewhat 'tight' fit initially after installation. After the vehicle remains stationary with a closed convertible top for some time, the convertible top fabric 'settles' so that the closing forces are again normal.
Advise customers of the temporarily increased closing forces.

NOTE: The operations shown only for one side must be carried out on both sides.

NOTE: RISK OF DAMAGE
Damage to the holder on the convertible top (C-pillar).
Handling of the convertible top fabric may result in damage to the holder in the area of the C-pillar.

Handle the convertible top fabric in the area of the C-pillar carefully and do not kink it.

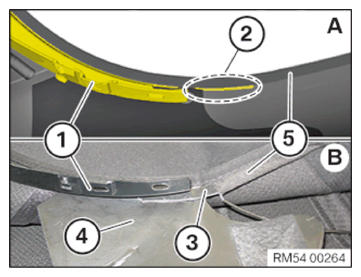

Version A:
The holder for the C-pillar (1) in the area (2) is sewn into the convertible top fabric (5).

No insert (3) must be installed.
Build date B:

The holder for the C-pillar (1) is shortened and not sewn into the convertible top fabric (5).

The insert (3) is inserted in the convertible top fabric (5) and bonded to the reinforcement (4).

The insert (3) must be installed and retrofitted as needed.

Courtesy of BMW OF NORTH AMERICA, INC.

Cover the side panel in the working area to protect the body from damage.
Spray a soapy solution onto the rail in the convertible top brace.
Insert the convertible top fabric (1) into the convertible top brace with the help from an support person.

Courtesy of BMW OF NORTH AMERICA, INC.

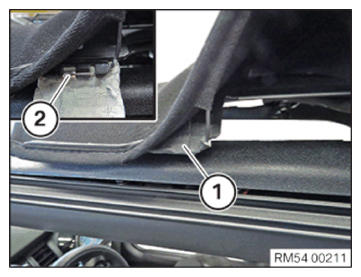

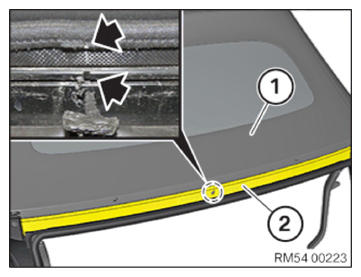

Align convertible top fabric (1) on the center mark to the convertible top brace (2).

Courtesy of BMW OF NORTH AMERICA, INC.

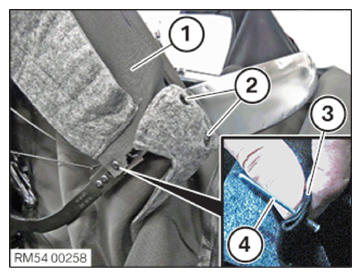

Fasten the luggage strap (1) with rivets (2).
Make sure that the luggage strap (1) is not twisted.
Fold the lug (3) together and fasten it with a rivet (4) on the frame.

Courtesy of BMW OF NORTH AMERICA, INC.

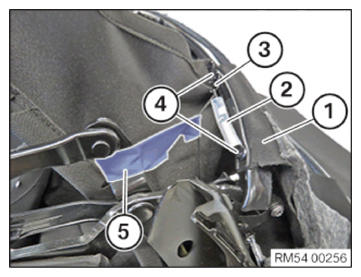

Position the luggage strap (1) with the spring (2) and the loop (3) and fasten it with the rivets (4).
Remove adhesive tape (5).

Courtesy of BMW OF NORTH AMERICA, INC.
Fold the luggage strap (1) as shown and fasten it this way with the rivet (2) on the frame.

Courtesy of BMW OF NORTH AMERICA, INC.

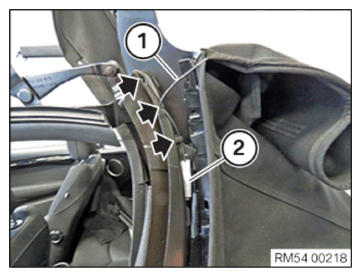

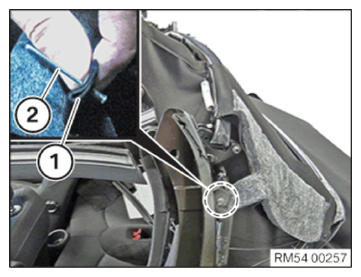

Attach the tension cable (1) in the spring (2) and the C-pillar.
Make sure that the tension cable (1) is only attached with the plastic sheathing in the C-pillar.
The following video sequence is a supplement to this operation.

Courtesy of BMW OF NORTH AMERICA, INC.

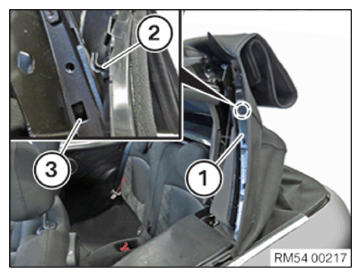

Raise the convertible top fabric (1) slightly above the convertible top frame on the side.
Push the convertible top fabric (1) slightly downwards and attach the guide (2) in the stand (3).

Courtesy of BMW OF NORTH AMERICA, INC.

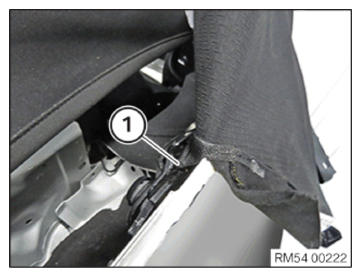

Pull the cover on the rail down and tighten the bolt (1) in this position.
TIGHTENING TORQUE SPECIFICATION

Convertible top fabric retaining rail to main pillar

2.5 Nm

Courtesy of BMW OF NORTH AMERICA, INC.
Insert the bow (1) into the convertible top fabric.
Attach the bow (1) on both sides.
The convertible top brace must not be locked.

Courtesy of BMW OF NORTH AMERICA, INC.

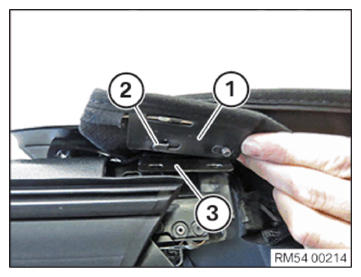

Attach holder (1) with the guide (2) in the convertible top frame (3).

Courtesy of BMW OF NORTH AMERICA, INC.

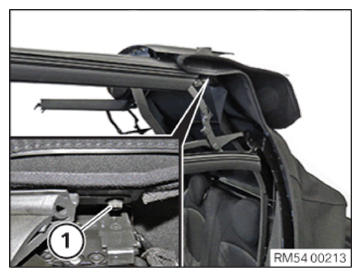

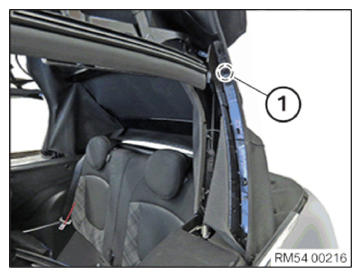

Prescrew the nut (1).

Courtesy of BMW OF NORTH AMERICA, INC.

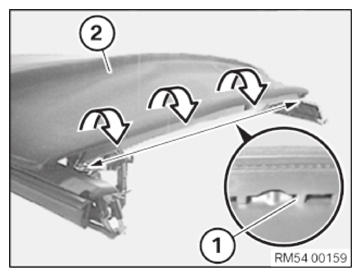

Position the convertible top fabric (2) on the front strut in the direction of the arrow.
Clip in the detents (1) in the highlighted area.
Close the convertible top completely and open it again.
Check to make sure that the convertible top fabric (2) is latched correctly.

Courtesy of BMW OF NORTH AMERICA, INC.
Attach tension cable (2).
Secure the tension cable (2) with the new adhesive tape (1) 50x50 mm.
Bond the adhesive tape (1) up to the sheet metal edge.
Close soft top completely.

Courtesy of BMW OF NORTH AMERICA, INC.

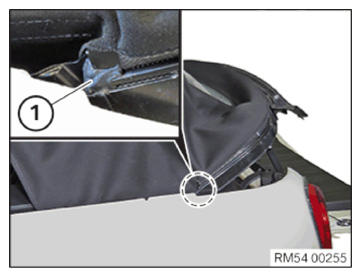

Use the butyl (1) to close the rails on the convertible top brace.

Courtesy of BMW OF NORTH AMERICA, INC.
Open the convertible top half way to reduce the convertible top tension.
Position the convertible top fabric on the bolt.
Insert the retaining clip (1).
Make sure that the retaining clip (1) is fitted correctly.

Courtesy of BMW OF NORTH AMERICA, INC.
Close the convertible top and lock the locking lever of the convertible top braces on the left and right.

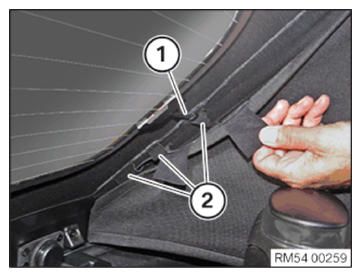

Guide the cable (1) through the lugs (2) on the convertible top fabric.
Connect the plug connection on the cable (1) and lock. The plug connection must snap audibly into place.

Courtesy of BMW OF NORTH AMERICA, INC.

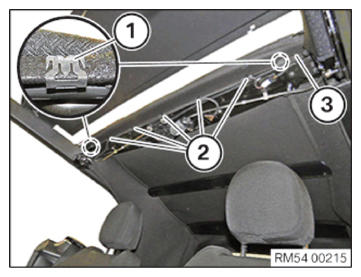

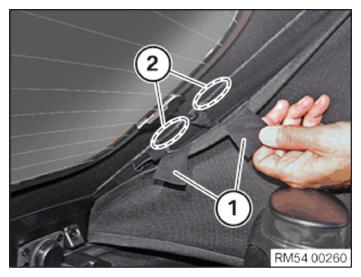

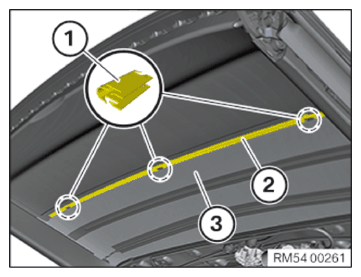

Insert Velcro fasteners (1) in the area (2) in the headlining.

Courtesy of BMW OF NORTH AMERICA, INC.
Clean the adhesive area (1).
Fix double-sided adhesive tape over the entire width of the adhesive area.
CONSUMABLE DESCRIPTION

Adhesive tape, double-sided 54112290978
Bond convertible top fabric (2) to the bow.

Courtesy of BMW OF NORTH AMERICA, INC.
Attach clamps (1) on bow (3).
Attach cable holder (2) on bow (3).

Courtesy of BMW OF NORTH AMERICA, INC.
Remove the clamps (1).
Remove adhesive tape residue and clean the adhesive area (2) with solvent cleaner R2.
Apply double-sided adhesive tape to the entire width of the adhesive area (2).
CONSUMABLE DESCRIPTION

Adhesive tape, double-sided 54112290978

Courtesy of BMW OF NORTH AMERICA, INC.
Bond convertible top fabric (3) to the bow.
Attach clamps (1).
Clamps (1) may be located in the respective trim.
Connect the trim (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Installing the trim panel for the rear case

Prerequisite

The convertible top is opened half way.

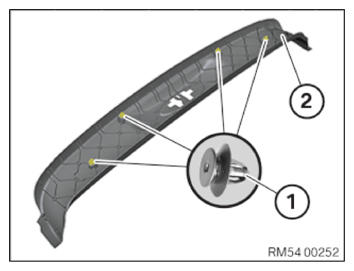

In the center, install four new clips (1) and install one lock nut (2) each on the left and right sides.
Parts: Clips and lock nuts.

Courtesy of BMW OF NORTH AMERICA, INC.

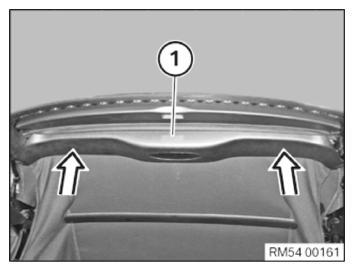

Clip in the trim panel for the case (1) from below in the arrow direction.

Courtesy of BMW OF NORTH AMERICA, INC.

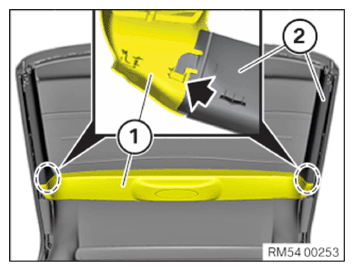

Insert the trim panel for the case (1) and with the help of the special tool, 2 298 505 guide it into the trim (2) on the left and right.

Courtesy of BMW OF NORTH AMERICA, INC.
Replace the bolts (1) on the left and right.
Parts: Screw
TIGHTENING TORQUE SPECIFICATION

Trim panel for case in rear

1.2 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

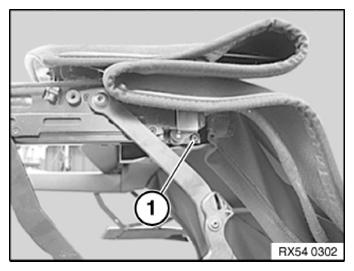

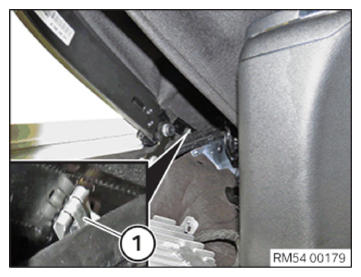

Tighten nut (1).

TIGHTENING TORQUE SPECIFICATION

Holder to retainer

4 Nm

Courtesy of BMW OF NORTH AMERICA, INC.
