Convertible Top - Repair (F57)
>>
54 31 Convertible_Top_Linkage
>>
Replacing left or right convertible top brace latch (Cooper Convertible)
>>
REP-TAT-P-5434-01 Removing convertible top brace lock
REP-TAT-P-5434-01 Removing convertible top brace lock

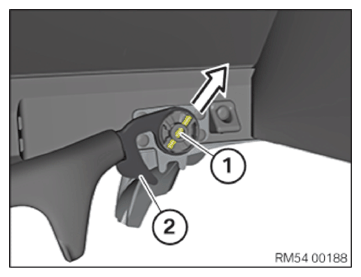

Lever out the protective cap (1).
Courtesy of BMW OF NORTH AMERICA, INC.
Drive out the locking pin (1).
Detach convertible top brace lock (2).
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
