Replacing hall effect sensors on roof crossbar (Cooper Convertible)

Preliminary work needed:

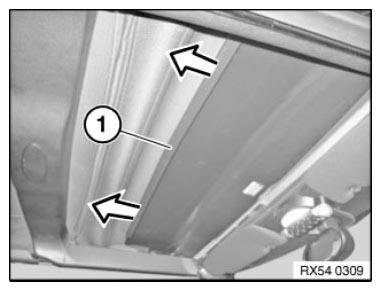

Open folding sunroof a few centimeters to relieve tension on soft top cover.

Detach cover (1) towards rear.

Courtesy of BMW OF NORTH AMERICA, INC.

Detach soft top cover (1) from front strut (2).

Installation note:

Replace double-sided adhesive tape.

Courtesy of BMW OF NORTH AMERICA, INC.

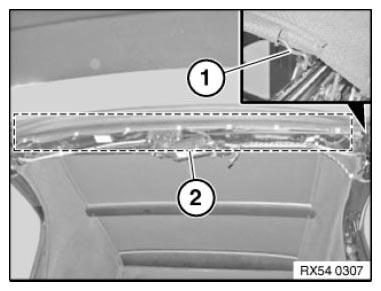

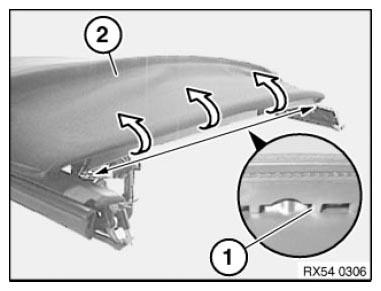

Unclip front plastic detents (1) in marked area.

If necessary, remove soft top cover (2) from front strut (front) in arrow direction.

Courtesy of BMW OF NORTH AMERICA, INC.

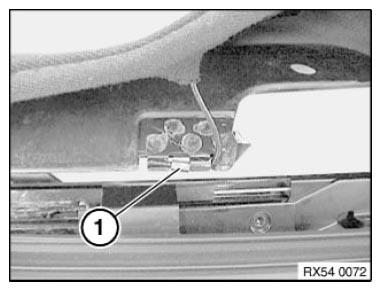

Detach tension cable (1) at side from roof frame.

Installation note:

Secure tension cable (1) to front strut with insulating tape.

Courtesy of BMW OF NORTH AMERICA, INC.

Unscrew left and right nuts (1).

Unlock retaining lug (2) on both sides.

Courtesy of BMW OF NORTH AMERICA, INC.

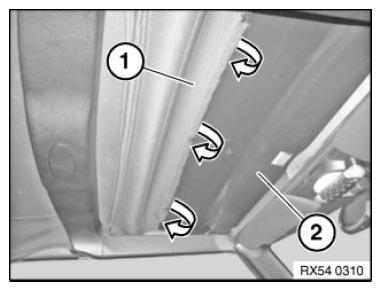

Disengage wire bow (1) on both sides.

Carefully release clamps in marked area (2).

Carefully release soft top cover from crossbar.

Installation note:

Replace double-sided adhesive tape.

Courtesy of BMW OF NORTH AMERICA, INC.

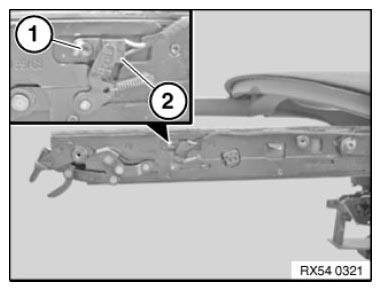

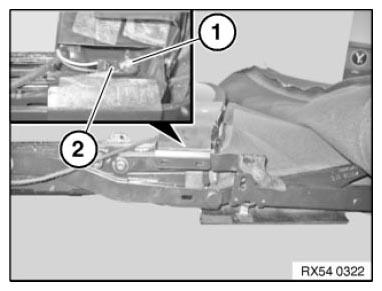

Remove screw (1).

Remove Hall effect sensor (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Raise cover.

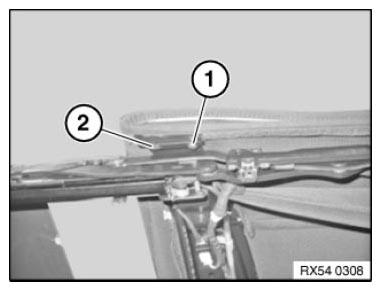

Remove screw (1).

Remove Hall effect sensor (2).

Courtesy of BMW OF NORTH AMERICA, INC.

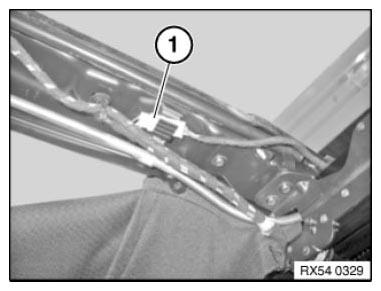

Disconnect plug connection (1) from roof crossbar.

Disconnect plug connection (1).

Remove hall effect sensors with feed line.

Courtesy of BMW OF NORTH AMERICA, INC.

Installation note:

Perform FUNCTIONAL CHECK and look out for folds in and tensioning of soft top cover.

Check safety catches.

With new soft top cover, the force of the mechanism may not be sufficient to fully close the safety catches.

Open convertible top brace and close folding sunroof.

Lock convertible top brace.

Soft top cover is stretched and after settling the safety catches are correctly locked again.
