Repair the convertible top fabric using the repair kit (Cooper Convertible)

Preliminary work needed:

• Remove outer WINDOW CAVITY COVER STRIP
• Partially release SOFT TOP TRIM STRIP .

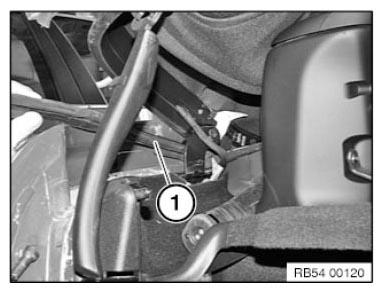

Remove gasket (1).

Courtesy of BMW OF NORTH AMERICA, INC.

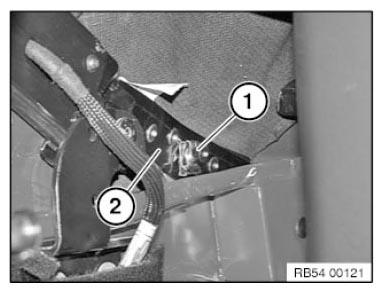

Loosen the clamp (1) and unclip the insert (2) towards the bottom.

Courtesy of BMW OF NORTH AMERICA, INC.

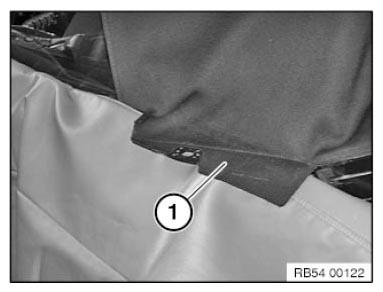

Feed out insert (1) upward and place it on wing/fender cover.

Courtesy of BMW OF NORTH AMERICA, INC.

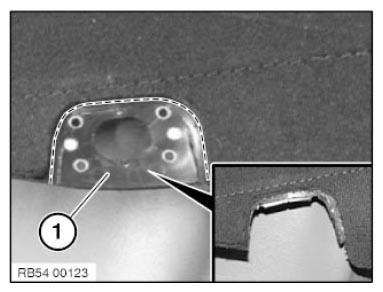

Cut out metal insert (1) as shown with suitable tool.

Minimum distance, soft top cover trim 2 mm.

Courtesy of BMW OF NORTH AMERICA, INC.

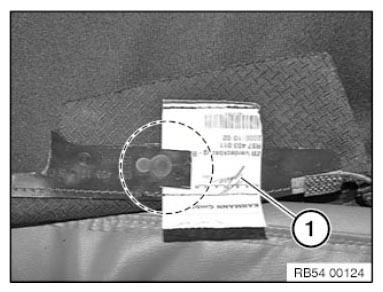

Cut out transport note (1) as shown.

Courtesy of BMW OF NORTH AMERICA, INC.

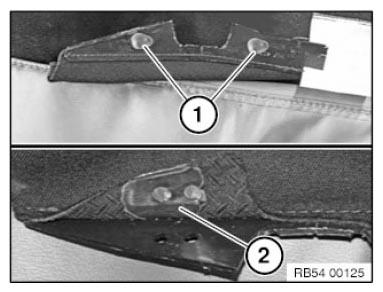

Use a suitable tool to remove the adhesive residue (1) and (2) from the inner and outer side.

Courtesy of BMW OF NORTH AMERICA, INC.

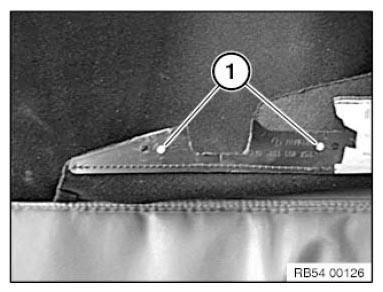

Pierce through positioning holes (1) with soft top with suitable tool.

Courtesy of BMW OF NORTH AMERICA, INC.

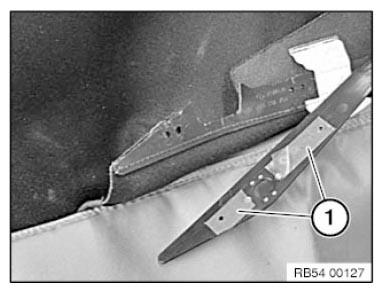

Detach protective films (1) of adhesive tapes.

Courtesy of BMW OF NORTH AMERICA, INC.

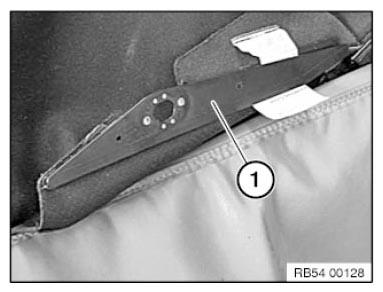

Mount insert (1) as shown.

Courtesy of BMW OF NORTH AMERICA, INC.

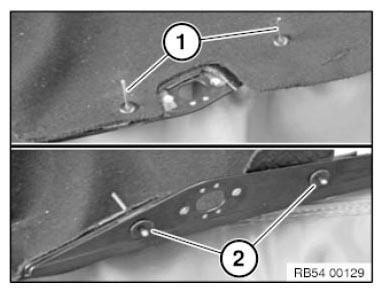

Rivet blind rivets (1) with washers (2).

Courtesy of BMW OF NORTH AMERICA, INC.

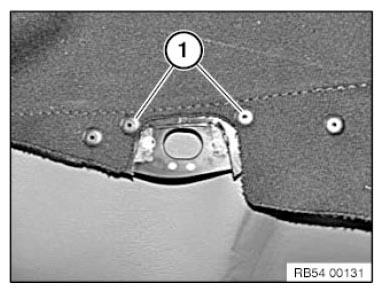

Introduce bores (1).

Courtesy of BMW OF NORTH AMERICA, INC.

Mount blind rivets (2).

Courtesy of BMW OF NORTH AMERICA, INC.

Shorten insert (1) in marked area.

Courtesy of BMW OF NORTH AMERICA, INC.
