REP-TAT-P-5434-02 Installing the safety catch

Follow-up work

• Install the INTERIOR TRIM  of the guide rail

• Insert the centering tip (2) pointing towards the bottom.
• Insert the sleeve (1) into the centering tip (2).

  Courtesy of BMW OF NORTH AMERICA, INC.

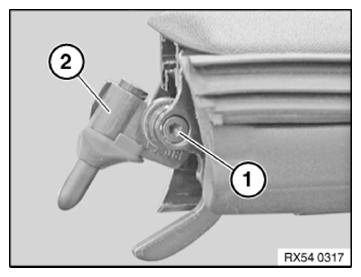

• Insert the centering pin (2).
• Tighten down screw (1).
  TIGHTENING TORQUE SPECIFICATION



  Centering tip

  4 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

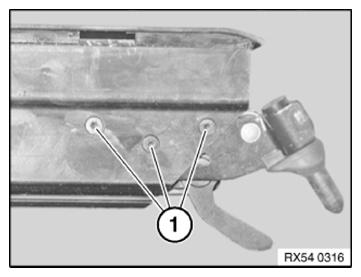

• Tighten the screws (1).

Courtesy of BMW OF NORTH AMERICA, INC.
