Convertible Top - Repair (F57)
>>
54 31 Convertible_Top_Linkage
>>
Removing and installing/replacing roofliner in soft top on left or right (Cooper Convertible)
>>
REP-TAT-P-5434-25 Replacement: Replacing tension cable
REP-TAT-P-5434-25 Replacement: Replacing tension cable

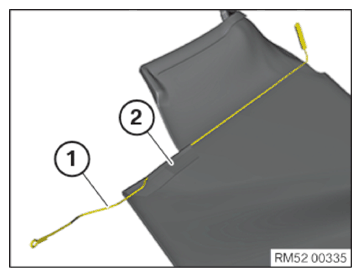

Insert a new tension cable (1) into the headlining (2).
Courtesy of BMW OF NORTH AMERICA, INC.
Courtesy of BMW OF NORTH AMERICA, INC.
