REP-TAT-P-5434-02 Installing the roof cassette

NOTE: Perform the steps on the right and left side.

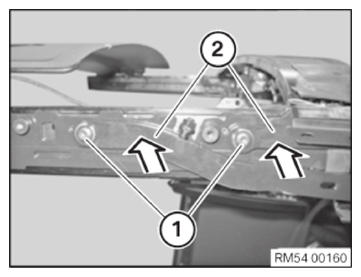

Attach the roof cassette to the linkage.
Lift the convertible top mechanism guide (2) at the linkage over the threaded bushings.
Tighten the screws (1).
TIGHTENING TORQUE SPECIFICATION

Roof cassette to linkage

8 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

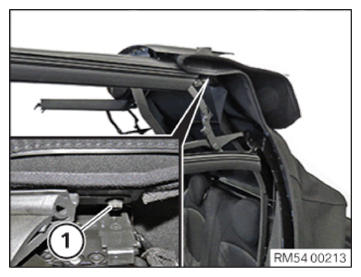

Connect plug connection (1) and lock.
NOTE: TECHNICAL INFORMATION
Detents, guides and mounting elements must not be damaged or missing.

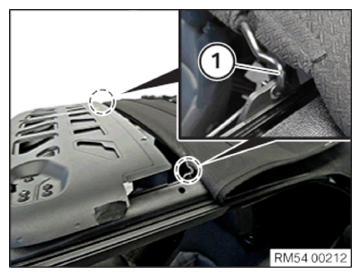

Clip in the clip (arrow).

Courtesy of BMW OF NORTH AMERICA, INC.

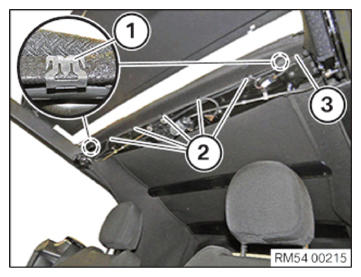

Position the headlining (2) at the front.
Pull in the blind rivets (1).

Courtesy of BMW OF NORTH AMERICA, INC.

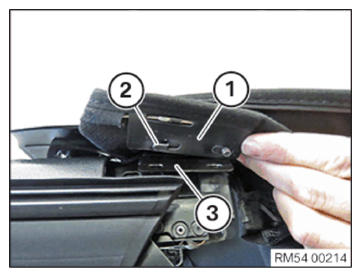

Attach holder (1) with guide (2) in the convertible top frame (3).

Courtesy of BMW OF NORTH AMERICA, INC.
Screw on the nut (1), do not tighten yet.

Courtesy of BMW OF NORTH AMERICA, INC.
Attach the bow (1) on both sides.

Courtesy of BMW OF NORTH AMERICA, INC.

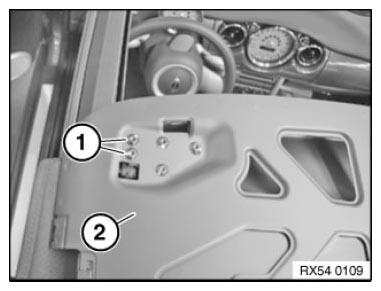

Replacement: Align the front strut

Align the front strut (2) with the cowl panel when the folding sunroof is closed.
If applicable, slacken the left and right screws (1), align the front strut (2) and tighten the screws (1).
TIGHTENING TORQUE SPECIFICATION

Front strut to frame

8 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

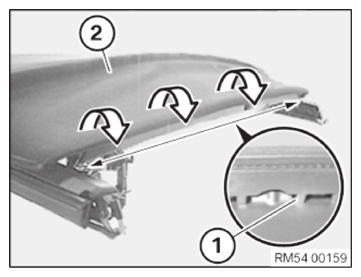

Position the convertible top fabric (2) on the front strut in the direction of the arrow.
Clip in the detents (1) in the highlighted area.

Courtesy of BMW OF NORTH AMERICA, INC.
Attach tension cable (2).
Secure tension cable (2) with adhesive tape (1).
Close soft top completely.

Courtesy of BMW OF NORTH AMERICA, INC.

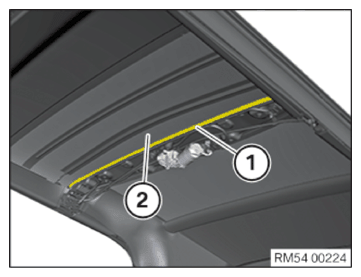

Clean the adhesive area (1).
Fix double-sided adhesive tape over the entire width of the adhesive area.
CONSUMABLE DESCRIPTION

Adhesive tape, double-sided 54112290978
Bond convertible top fabric (2) to the bow.

Courtesy of BMW OF NORTH AMERICA, INC.

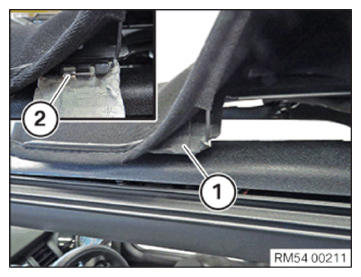

Attach clamps (1) on bow (3).
Attach cable holder (2) on bow (3).

Courtesy of BMW OF NORTH AMERICA, INC.

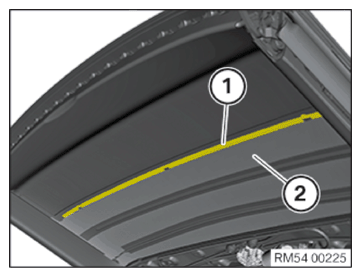

Clean the adhesive area (1).
Fix double-sided adhesive tape over the entire width of the adhesive area.
CONSUMABLE DESCRIPTION

Adhesive tape, double-sided 54112290978
Bond convertible top fabric (1) on front strut (2).

Courtesy of BMW OF NORTH AMERICA, INC.

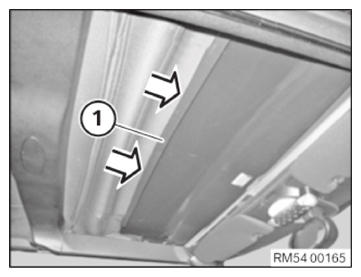

Open the folding sunroof a few cm.
Push the trim (1) towards the front and position it.

Courtesy of BMW OF NORTH AMERICA, INC.
Tighten nuts (1) on left and right.
TIGHTENING TORQUE SPECIFICATION

Holder to retainer

4 Nm

Courtesy of BMW OF NORTH AMERICA, INC.

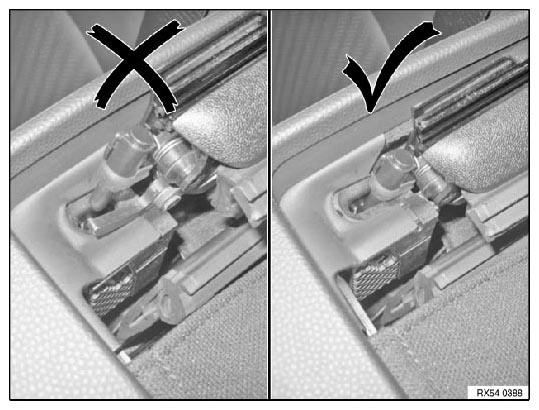

Execute functional check:
The safety catch must engage correctly under the stowage lock.

Courtesy of BMW OF NORTH AMERICA, INC.
