REP-TAT-P-5434-02 Installing the seal on the roof frame at the rear

• Shift the convertible top into the shown position.

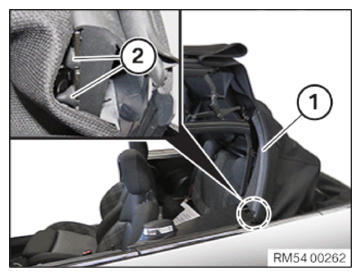

• Guide the seal (1) in with the guides (2).
• Insert the seal (1) completely in the convertible top and align it.

  Courtesy of BMW OF NORTH AMERICA, INC.

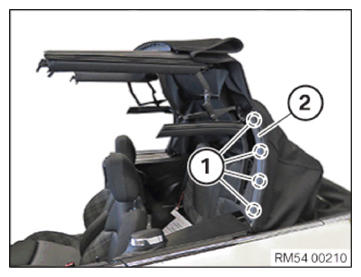

• Tighten the screws (1) inside the seal (2).
  TIGHTENING TORQUE SPECIFICATION



  Seal on the rear roof frame

  2.5 Nm

  Courtesy of BMW OF NORTH AMERICA, INC.

• Close soft top.

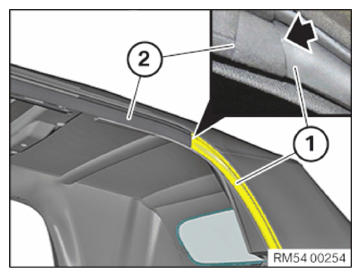

• Check the alignment of the seal (1) to the seal (2).

The gasket (1) must have contact pressure with the gasket (2).
