REP-TAT-P-5434-02 Installing the trim panel for the rear case

Prerequisite

The convertible top is opened half way.

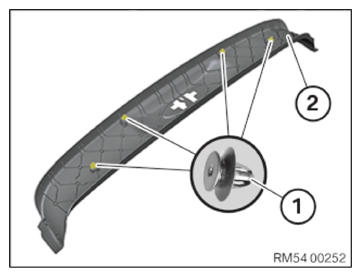

In the center, install four new clips (1) and install one lock nut (2) each on the left and right sides.
Parts: Clips and lock nuts.

Courtesy of BMW OF NORTH AMERICA, INC.

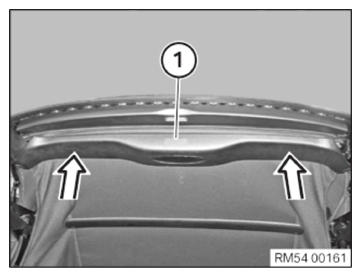

Clip in the trim panel for the case (1) from below in the arrow direction.

Courtesy of BMW OF NORTH AMERICA, INC.

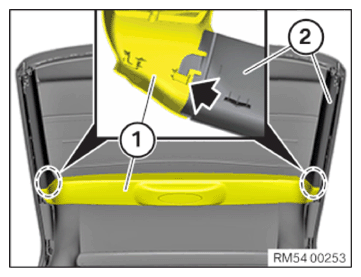

Insert the trim panel for the case (1) and with the help of the special tool, 2 298 505 guide it into the trim (2) on the left and right.

Courtesy of BMW OF NORTH AMERICA, INC.

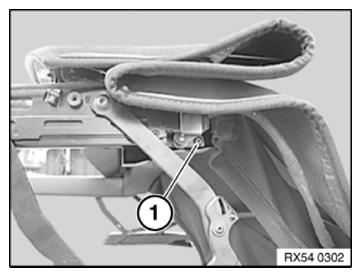

Replace the bolts (1) on the left and right.

Parts: Screw

TIGHTENING TORQUE SPECIFICATION

Trim panel for case in rear

1.2 Nm

Courtesy of BMW OF NORTH AMERICA, INC.
