Removing and installing/replacing rear cover (rear convertible top bow) (Cooper Convertible)

Necessary preliminary work

• Open soft top half way

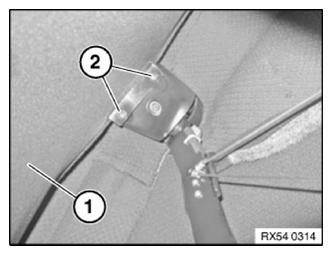

Carefully pull headlining (1) to one side.

Release left and right screws (2).

Remove headlining (1) from rear cover.

Courtesy of BMW OF NORTH AMERICA, INC.

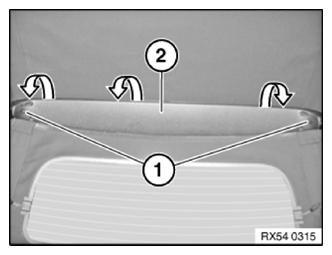

Unscrew the screws (1).

Unclip cover (2).

Courtesy of BMW OF NORTH AMERICA, INC.
