REP-TAT-P-5434-02 Install the seal of the roof frame

• Adjust the seal of the roof frame

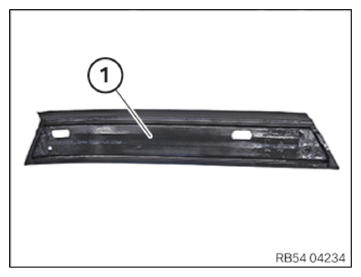

• Coat the seal (1) with mounting agent.

  Courtesy of BMW OF NORTH AMERICA, INC.

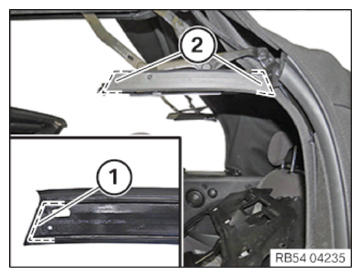

• Place the end piece of the seal (1) onto the front roof frame (2) and secure it approximately 5 cm toward the back.
• Place the end piece of the seal (1) onto the rear roof frame (2) and secure it approximately 5 cm toward the front.

  Courtesy of BMW OF NORTH AMERICA, INC.

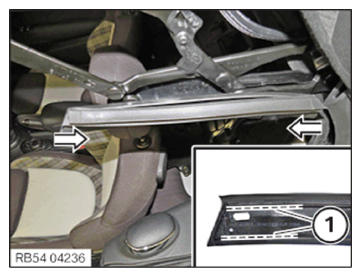

• Apply light pressure to engage the upper section (1), pressing it from the right and the left into the center.
• Apply light pressure to engage the lower section (1), pressing it from the right and the left into the center.
• Check gasket for correct fit.

Courtesy of BMW OF NORTH AMERICA, INC.
