REP-TAT-P-5434-02 Installing the base plate
NOTE:
TECHNICAL INFORMATION
The gap dimensions form the basis for these repair instructions and must be observed without fail.
For additional information see: GAP DIMENSIONS, BODY
The gap dimensions form the basis for these repair instructions and must be observed without fail.
For additional information see: GAP DIMENSIONS, BODY

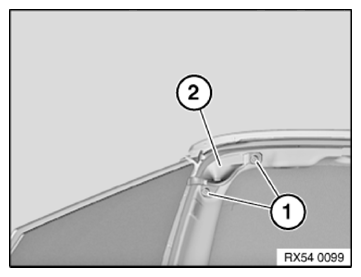

- Position the base plate (2).
- Tighten the screws (1) hand force.
- Close soft top.

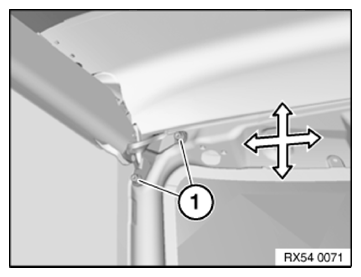

- Check the gap dimensions and if necessary, align the convertible top.
- Tighten the screws (1).
TIGHTENING TORQUE SPECIFICATION
| Base plate to body |
| 7.6 Nm |
