REP-TAT-P-5434-01 Removing the stowage locks

Prerequisite

Soft top completely open.

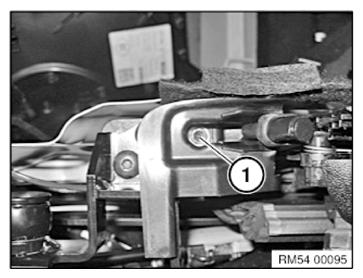

• Disconnect the plug connection (1) from the hall effect sensor.
• Unclip cable from body.

  Courtesy of BMW OF NORTH AMERICA, INC.

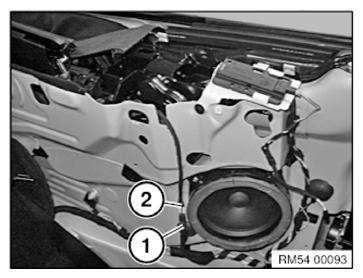

• Loosen the screw (1) and remove the cover.

  Courtesy of BMW OF NORTH AMERICA, INC.

• Left side only:

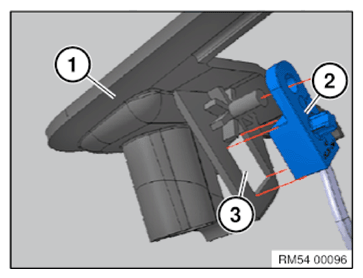

  Carefully lift the cover (1).

  Detach the hall effect sensor (2) from the recess (3) of the cover (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

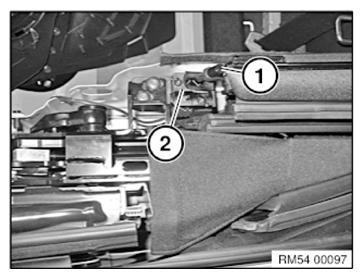

• Open the convertible top locking (1) at the stowage lock (2).
• Shift soft top a little in the "close" direction.

  Courtesy of BMW OF NORTH AMERICA, INC.

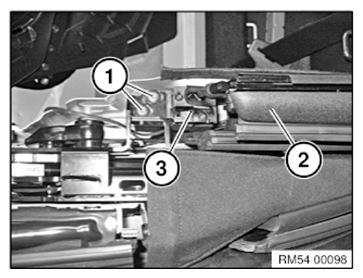

• Loosen screws (1).
• Carefully lift the convertible top (2) and remove the stowage lock (3) towards the rear.
