Attaching the convertible top to the convertible top storage tray

CAUTION:

Heavy component

Heavy components can lead to injury or damage.

Remove and install heavy components with the aid of another person/other persons

NOTE: TECHNICAL INFORMATION
please comply with the instructons in Owner's manual/service information

Courtesy of BMW OF NORTH AMERICA, INC.

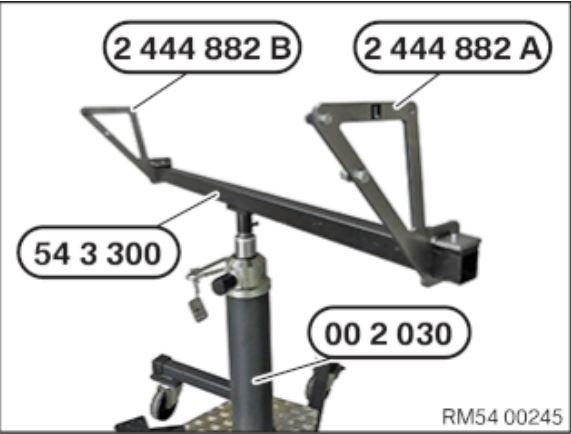

Set special tool 0 496 458 (54 3 300) onto special tool 0 490 133 (00 2 030) and fasten.
Screw special tool 2 444 882 A and B tight onto special tool 0 496 458 (54 3 300) to 10 Nm.
Pay attention to the left and right side. The outside of special tool 2 444 882 A and B must be flush with special tool 0 496 458 (54 3 300).

Courtesy of BMW OF NORTH AMERICA, INC.

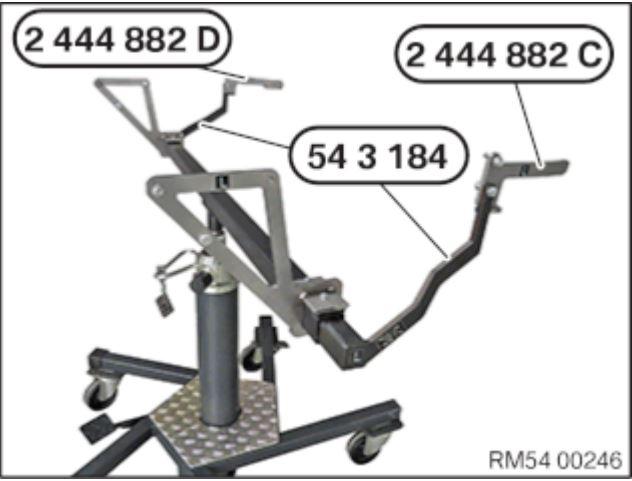

Insert special tool 0 494 940 (54 3 184) left and right.
Screw special tool 2 444 882 C and D tight onto special tool 0 494 940 (54 3 184) to 20 Nm.

Courtesy of BMW OF NORTH AMERICA, INC.

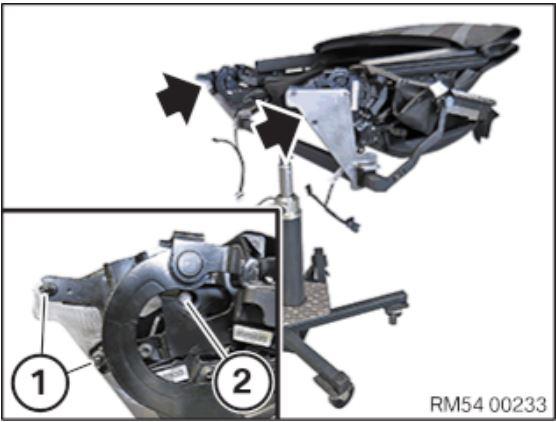

Attach the convertible top using the special tool 0 496 323 (54 3 240) to the bolts (1) and secure it with the bolt (2.)
Tighten the nuts on the bolts (1.)

Courtesy of BMW OF NORTH AMERICA, INC.

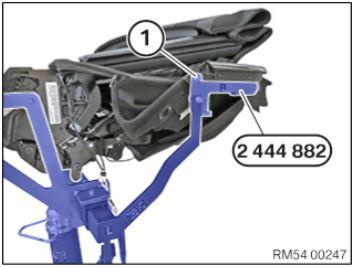

Position the convertible top on the left and right of the special tool 2 444 882 and secure it with the bolt (1.)
