REP-TAT-P-5210-25 Replacing the cushion for the front seat backrest
NOTE:
TECHNICAL INFORMATION
The heating mat is glued to the foam pad and cannot be dismantled nondestructively.
When replacing the heating mat, a new one must always be installed with a new foam pad.
The heating mat is glued to the foam pad and cannot be dismantled nondestructively.
When replacing the heating mat, a new one must always be installed with a new foam pad.
NOTE:
Schematic diagram is for example purposes. Some parts may differ in certain details.
- Replace the cushion (2).
Parts: Upholstery
- Version with seat heating:

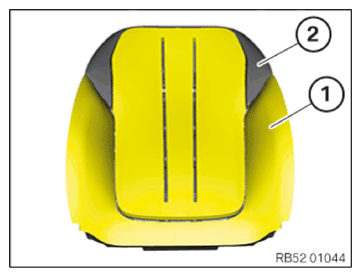

Position and align the heating mat (1) on the upholstery (2).
Bond the heating mat (1) with the upholstery (2).
