REP-TAT-P-5218-02 Install the trim at the top of aperture

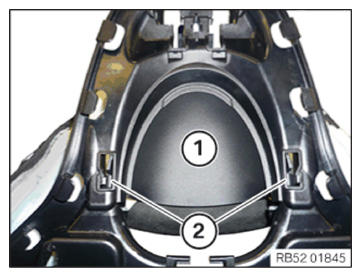

G13798118Courtesy of BMW OF NORTH AMERICA, INC.

Required follow-up work

Install TRIM  for backrest release

Install the REAR PANEL  from the front seat backrest

Install the TRIM  at the bottom of the aperture
