REP-TAT-P-5175-01 Removing undershield on right

Remove  RIGHT TENSION STRUT

Remove  TRAILING LINK

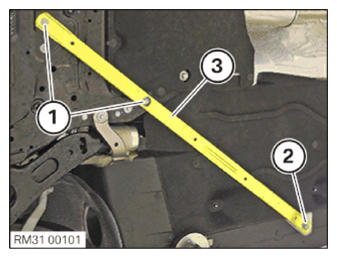

• Loosen screws (1) and (2).
• Remove tension strut (3).

Courtesy of BMW OF NORTH AMERICA, INC.

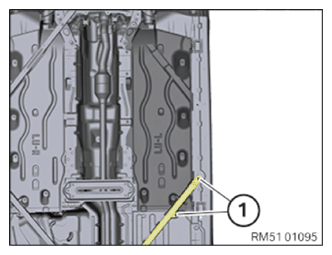

• Loosen screws (1).

  Courtesy of BMW OF NORTH AMERICA, INC.

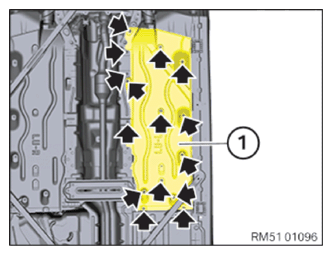

• Unscrew all bolts and nuts (arrows).
• Remove the underbody planking (1).

Courtesy of BMW OF NORTH AMERICA, INC.
