Removing and installing/replacing the cover on the bottom left or right of the front door (Cooper Convertible)
Special tools required:
Removal:

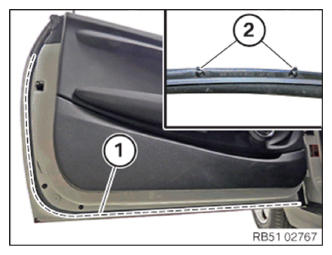

Unclip the clips (2) along the dotted line using special tool 2 298 505.
Remove cover (1).
 Courtesy of BMW OF NORTH AMERICA, INC.
|
Installation:
NOTE:

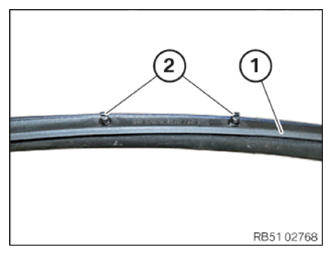

The clips (2) of the cover (1) must not be damaged or missing.
 Courtesy of BMW OF NORTH AMERICA, INC.
|
Install cover (1).
Clip in the clips (2) along the dotted line.
 Courtesy of BMW OF NORTH AMERICA, INC.
|
