REP-TAT-P-5114-02 Installing the model inscription
Further information is available .
NOTE:
Technical information NOTES
on component bonding using adhesive tape form the basis for these repair instructions and must be observed without fail.
For additional information see: NOTES on component bonding with adhesive tape
on component bonding using adhesive tape form the basis for these repair instructions and must be observed without fail.
For additional information see: NOTES on component bonding with adhesive tape
CAUTION:
Laser beam.
Injury hazard!
Injury hazard!
- Do not look into the laser beam.

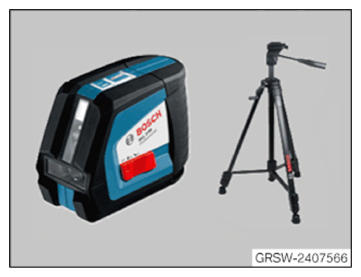

- Park the vehicle and the special tool 2 407 566 on a flat and even surface.
- Mount the laser on the tripod.
- Switch on laser (Position without automatic level).
- Activate laser horizontally and vertically.
- Position the tool behind the vehicle.

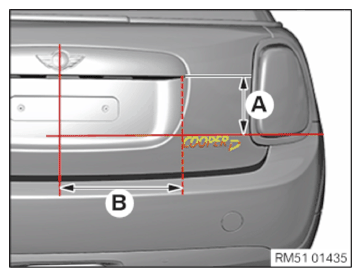

- Align vertical laser beam at the center of the mini emblem.
- Align the horizontal laser beam on the edge of the handle with the dimension (A) = 17 cm.
- Remove the adhesive residues and clean the bonding surface.
| Consumable | ||
|---|---|---|
| Cleaning agent R2 | 500 ml | 83190417324 |
- Detach the liner (protective film) from the adhesive strip of the model inscription.
- Align the model inscription on the laser beams with the dimension (B) = 33 cm and press on to the tailgate.
