REP-TAT-P-5113-02 Installing the lower ornamental grille surround

Follow-up work

• Install the upper ORNAMENTAL GRILLE SURROUND
• Install front BUMPER COVER

• Check all detents at the lower ornamental grille surround (1).

  If there are faulty detents, replace the lower ornamental grille surround (1).

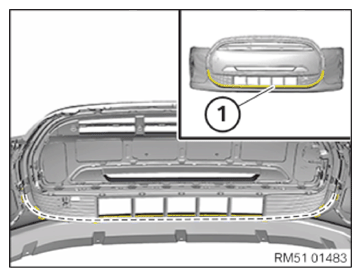

• Position the lower ornamental grille surround (1) correctly and engage it at all detents along the dashed line.

  Courtesy of BMW OF NORTH AMERICA, INC.
